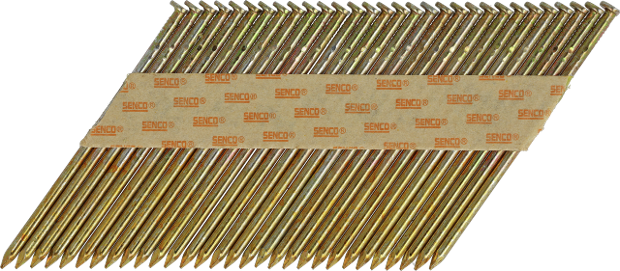

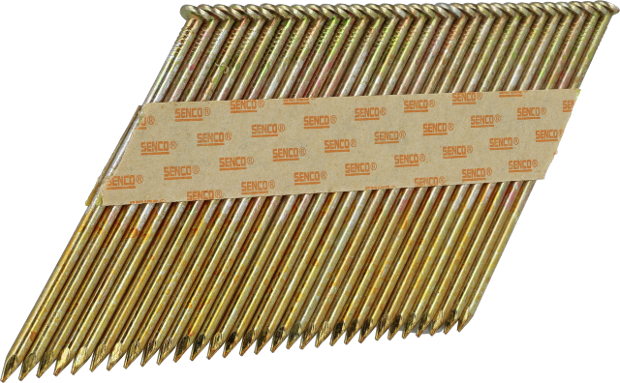

HC stripspijker glad 3,1x90mm

tap image to zoom

Description

3,1mm gladde stripspijker, gegalvaniseerd, Sencoted

Lees meer Lees minder

Applications

Constructie, Bekleding, Ondervloeren, Vlonders, Spanten, Palleten en kratten

Lees meer Lees minder

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Artikelnummer: HC59AAB
GTIN: 4032933207320

Technical specifications

Rolhoek: 34 °
Verbindingstype: Papier gebonden
Draad materiaal: Carbon met standaard treksterkte

Fastener specifications

Afwerking: Standaard gegalvaniseerd
Coating: Sencoted
Toepassingsomgeving: Binnen
Nageltype: D-kop stripspijker
Nagelkop type: Geknipte kop
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Spijker diameter: 3.1 mm
Aantal bevestigingsmiddelen per strip/rol: 59 - 61
Spijker lengte: 90.0 mm

CeSpecifications

Karakteristieke kop doortrek parameter: 30.1 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: HC59AAB
Corrossieklasse in micron: ≤5
Service klasse: 1
Coating type: Coating type 3
Coating lengte: 60.0 mm
Kop oppervlakte: 30.0 mm
Karakteristieke buigmoment: 2570.0 Nmm
Karakteristieke breuksterkte: 633.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 3.1 N/mm²

Non-technical specifications

Verpakkingshoeveelheid: 3000

Logistical specifications

Nettogewicht: 15.56 kg

Gerelateerde tools

Zie alle producten

Downloads

HC59AAB_nl_CommercialProductSheet_1.7_1752322669162 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 123 Kb
DOP VS-CPR-201305-S028 PDF 123 Kb
HC59AAB_nl_DeclarationOfPerformanceDoP_1.0eu_1729231351324 PDF 62 Kb
