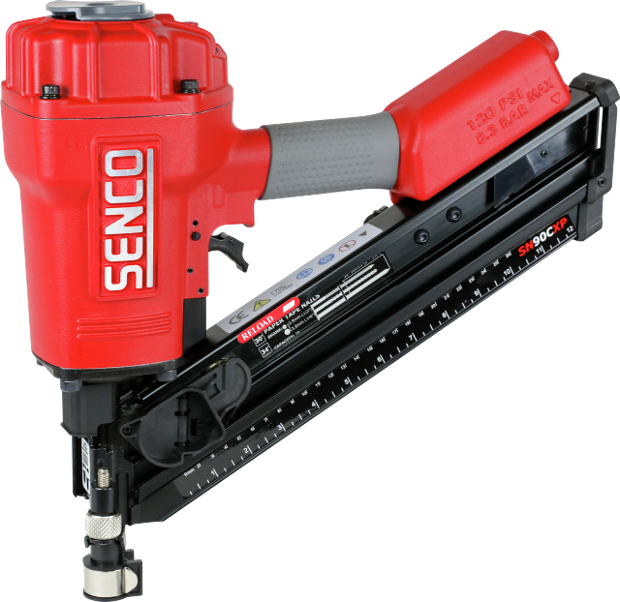

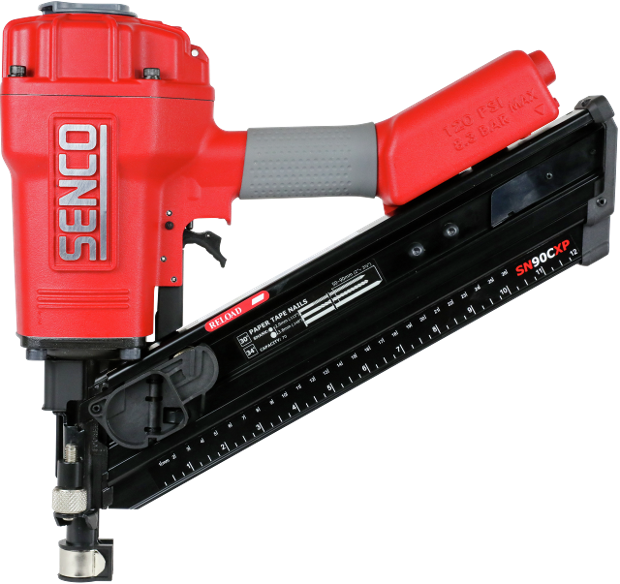

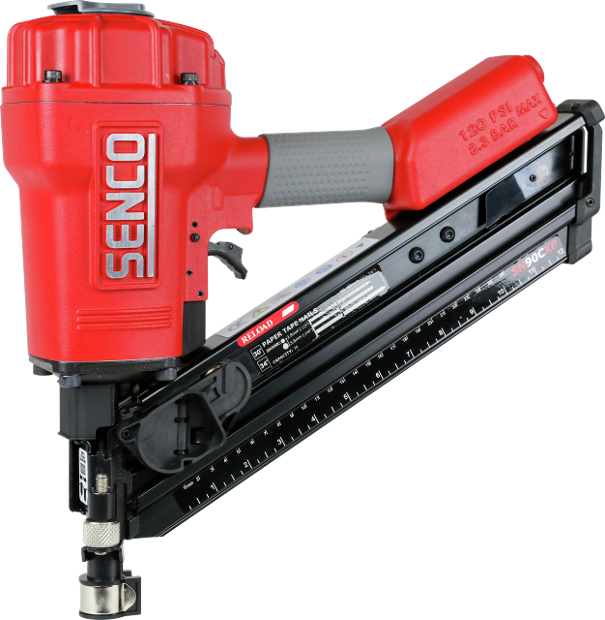

SN90CXP, D-kop spijkermachine, BF/TF ( dual )

tap image to zoom

Description

De SN90CXP D-kop constructie spijkermachine is ontworpen met de professional in gedachte. XtremePro modellen zijn zowel intern als extern verbeterd om de levensduur en het gebruikscomfort extra te verhogen. Deze compacte constructie spijkermachine is licht te bedienen en ontziet de arm. Het 34° korte, recht-in-lijn magazijn geeft excellente beweegruimte, balance en zicht op het werk. Hij verwerkt spijkers van 50 tot 90mm legnte en is daarmee geschikt voor elk werk.

Lees meer Lees minder

Applications

Constructie, Ondervloeren, Bekleding, Vlonders, Gevelbekleding, Hekwerk, Palleten en kratten

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 2H2001N
GTIN: 0741474305467
Type: SN90CXP

Technical specifications

Rolhoek: 34 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Papier gebonden
Activering instelling: Dual
Magazijn capaciteit: 70
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 283.2 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 96.0 Lpa
Geluidskrachtniveau: 101.0 Lwa
Trillingniveau: 4 m/s2

Fastener specifications

Nageltype: D-kop stripspijker
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 50 - 90 mm
Spijker gladde schacht diameter: 2.87 - 3.8 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 50 - 75 mm
Spijker geringde schacht diameter: 2.87 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 75 mm
Schroef schacht nageldiameter: 2.87 - 3.1 mm

Non-technical specifications

Garantie: 5 jaar
Afmetingen (DxWxH): 106 x 384 x 337 mm

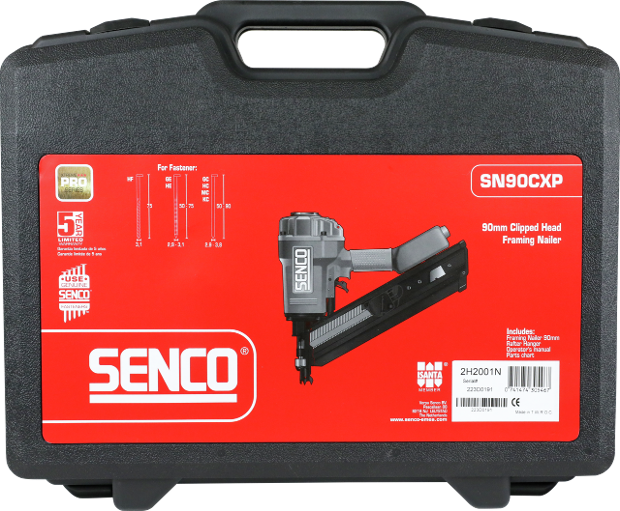

Inclusief koffer: ja

Logistical specifications

Nettogewicht: 3.62 kg
