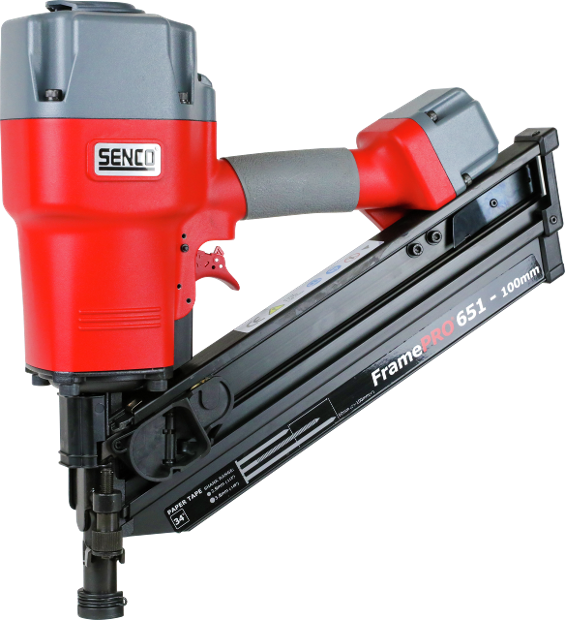

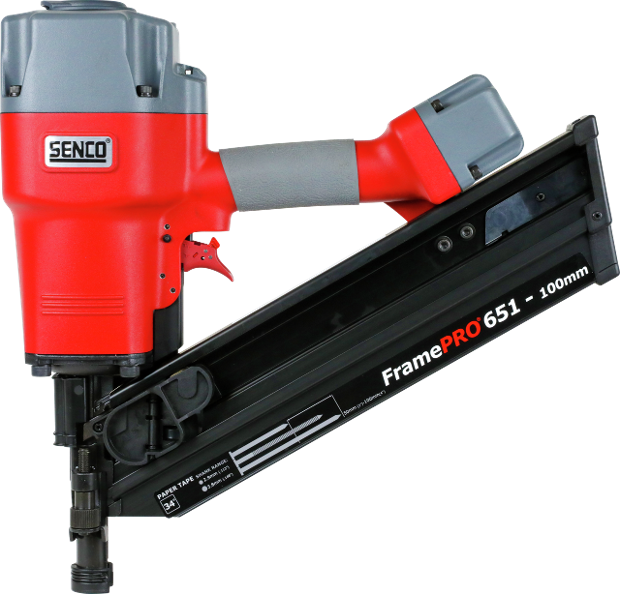

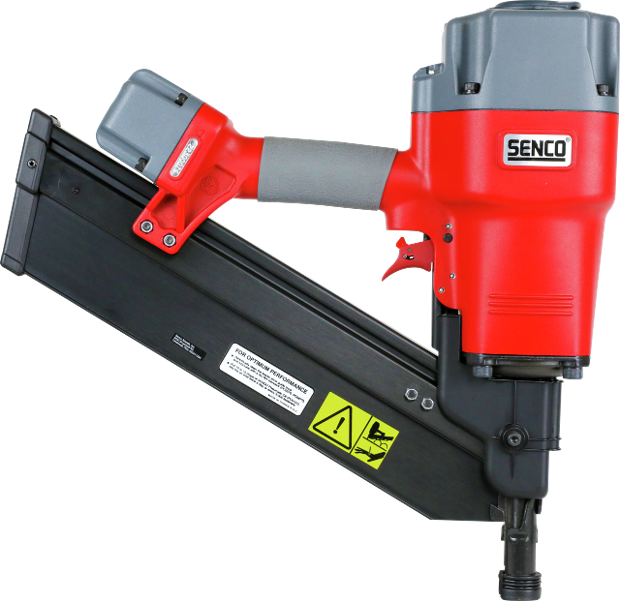

FramePro651, D-kop spijkermachine 100mm, BF/TF ( dual )

tap image to zoom

Description

De FramePro651 pneumatische constructiespijker machine verwerkt D-kop stripspijkers met een diameter van 2,87 tot 3,3 mm en een lengte van 50 tot 100mm. Als onderdeel van de ProSerie biedt deze machine alle belangrijke eigenschappen tegen een betaalbare prijs. Door zijn compacte ontwerp is hij gemakkelijk te hanteren en belast hij de arm niet. Het 34° korte, recht-in-lijn magazijn geeft excellente beweegruimte, balans en zicht op het werk.

Lees meer Lees minder

Applications

Parket, Vlonders, Hekwerk, Constructie, Palleten en kratten, Bekleding, Gevelbekleding, Ondervloeren

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 2G2121N
GTIN: 0741474125218
Type: FramePro651

Technical specifications

Rolhoek: 34 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Papier gebonden
Activering instelling: Dual
Magazijn capaciteit: 70
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 311.5 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 97.0 Lpa
Geluidskrachtniveau: 101.0 Lwa
Trillingniveau: 3.67 m/s2

Fastener specifications

Nageltype: D-kop stripspijker
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 50 - 100 mm
Spijker gladde schacht diameter: 2.87 - 3.3 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 50 - 100 mm
Spijker geringde schacht diameter: 2.87 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 100 mm
Schroef schacht nageldiameter: 2.87 - 3.1 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 106 x 384 x 362 mm

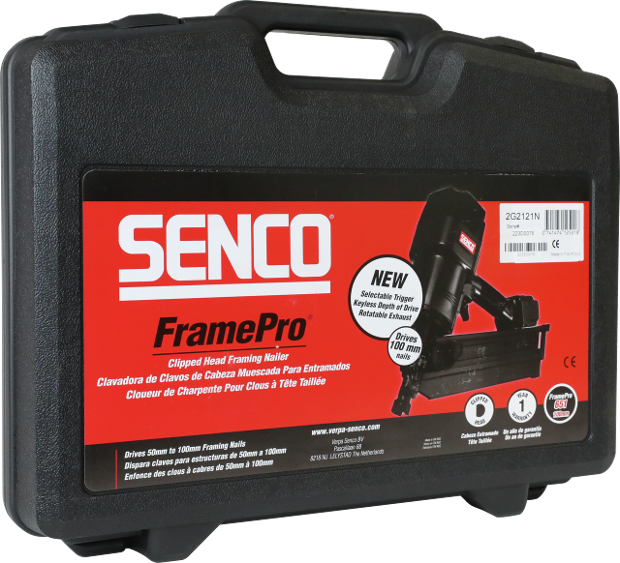

Inclusief koffer: ja

Logistical specifications

Nettogewicht: 3.81 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Framepro602 PDF 8 Mb
Manual SENCO stripnailers PDF 25 Mb
Manual SENCO Stripnailers PDF 24 Mb
Part chart SENCO framing nailer CH FramePro651 PDF 1 Mb
2G2121N_nl_CommercialProductSheet_1.10_1752314985387 PDF 2 Mb
