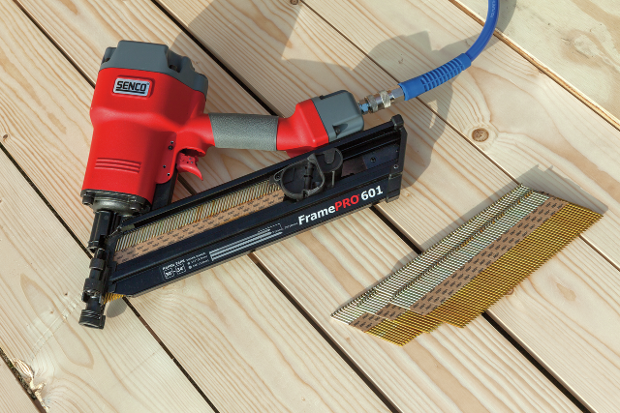

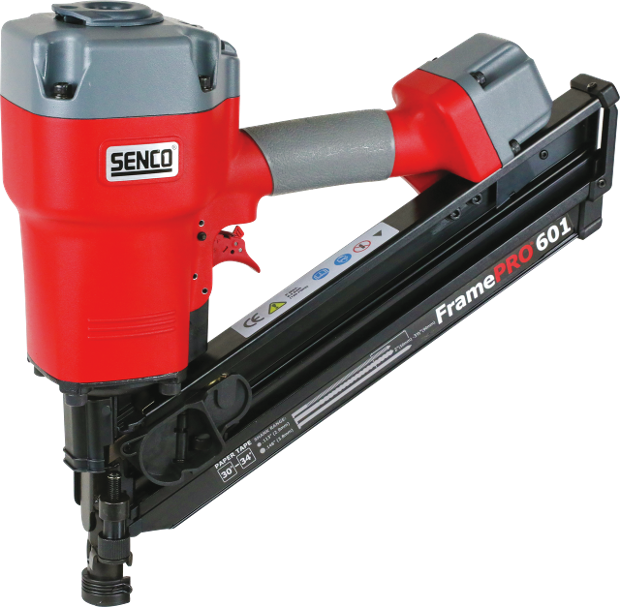

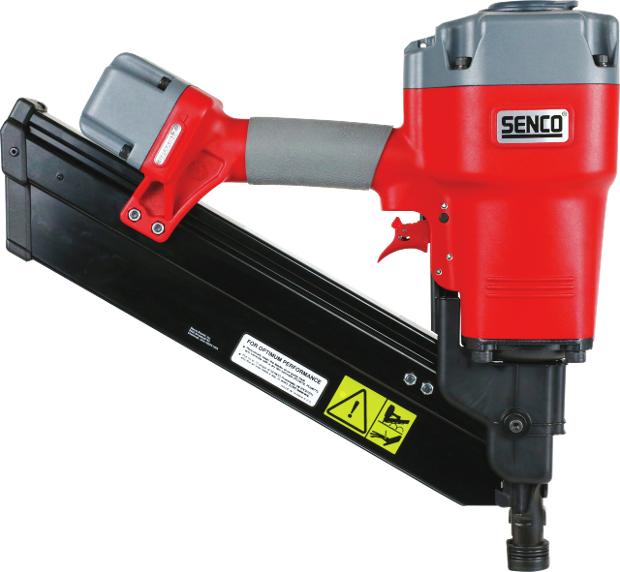

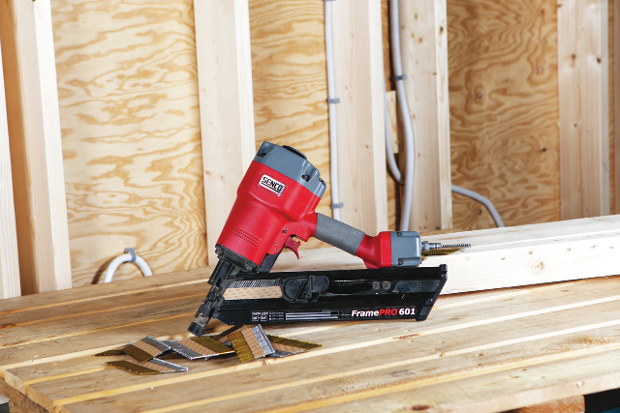

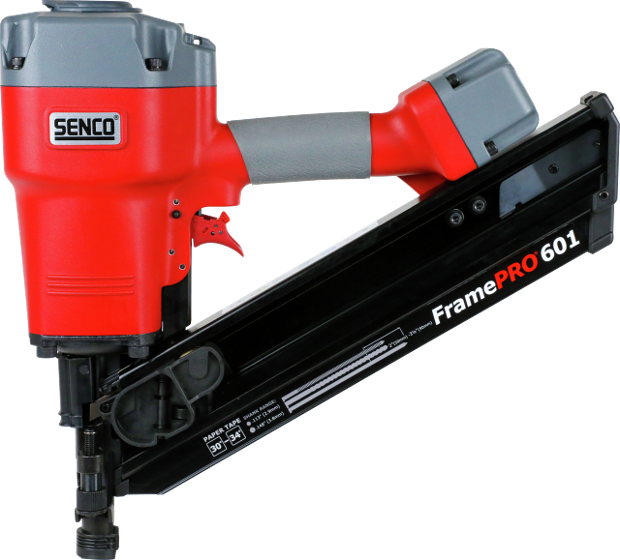

FramePro601, D-kop spijkermachine

tap image to zoom

Description

Deze pneumatische D-kop constructie spijkermachine biedt u alle belangrijke eigenschappen die u wilt voor een betaalbare prijs. Een krachtige Pro Serie machine voor constructies die een brede range spijkers verwerkt in drie diameters (2,9-3,1 en 3,3mm) van 50 tot 90mm voor elke job.Zijn compacte design is makkelijk te bedienen en ontziet uw arm. Het 34° korte, recht-in-lijn magazijn geeft excellente beweegruimte, balance en zicht op het werk.

Lees meer Lees minder

Applications

Constructie, Planken, Composiet, Houtconstructies, Ondervloeren, Hekwerk, Daken

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 1G2101N
GTIN: 0741474124631
Type: FramePro601

Technical specifications

Rolhoek: 34 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Papier gebonden
Activering instelling: Dual
Magazijn capaciteit: 70
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 283.2 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 96.0 Lpa
Geluidskrachtniveau: 101.0 Lwa
Trillingniveau: 3.7 m/s2

Fastener specifications

Nageltype: D-kop stripspijker
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 50 - 90 mm
Spijker gladde schacht diameter: 2.87 - 3.3 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 50 - 75 mm
Spijker geringde schacht diameter: 2.87 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 75 mm
Schroef schacht nageldiameter: 2.87 - 3.1 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 106 x 384 x 337 mm
Inclusief koffer: ja

Logistical specifications

Nettogewicht: 3.62 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Stripnailers PDF 24 Mb
Manual SENCO Framepro601 PDF 8 Mb
Manual SENCO Framepro602 PDF 8 Mb
Manual SENCO stripnailers PDF 25 Mb
Part chart SENCO 1G2101N PDF 1 Mb
1G2101N_nl_CommercialProductSheet_1.7_1752323361034 PDF 2 Mb
