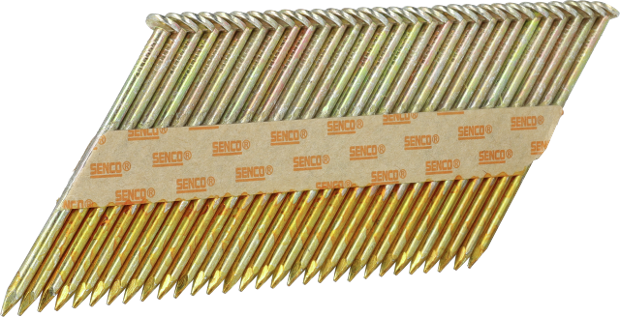

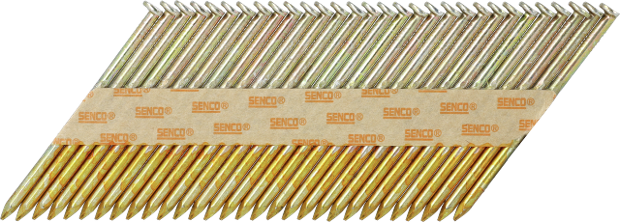

GC stripspijker glad 2,87x60mm

tap image to zoom

Description

2,87mm smooth stripnail, 12 mµ, Sencoted

Lees meer Lees minder

Applications

Constructie, Bekleding, Ondervloeren, Vlonders, Spanten, Palleten en kratten

Lees meer Lees minder

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Artikelnummer: GC54AXBKR
GTIN: 8715274302232

Technical specifications

Rolhoek: 34 °
Verbindingstype: Papier gebonden
Draad materiaal: Carbon met standaard treksterkte

Fastener specifications

Afwerking: Verzinkt 12 micron
Coating: Sencoted
Toepassingsomgeving: Overdekt
Nageltype: D-kop stripspijker
Nagelkop type: Geknipte kop
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Spijker diameter: 2.87 mm
Aantal bevestigingsmiddelen per strip/rol: 59 - 61
Spijker lengte: 60.0 mm

CeSpecifications

Karakteristieke kop doortrek parameter: 27.12 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: GC54AXBKR
Corrossieklasse in micron: 55
Service klasse: 3
Coating type: Coating type 3
Coating lengte: 36.0 mm
Kop oppervlakte: 30.0 mm
Karakteristieke buigmoment: 3054.0 Nmm
Karakteristieke breuksterkte: 695.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 2.45 N/mm²

Non-technical specifications

Verpakkingshoeveelheid: 2000

Logistical specifications

Nettogewicht: 6.65 kg

Gerelateerde tools

Zie alle producten

Downloads

GC54AXBKR_nl_CommercialProductSheet_1.2_1752336833860 PDF 1 Mb
GC54AXBKR_nl_DeclarationOfPerformanceDoP_1.0eu_1748317320098 PDF 62 Kb
