HD stripspijker glad 3,1x90mm

tap image to zoom

Description

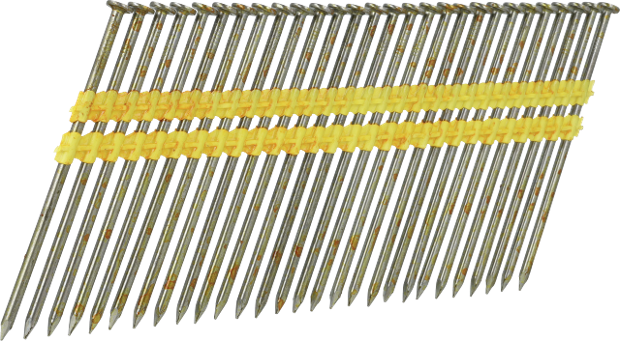

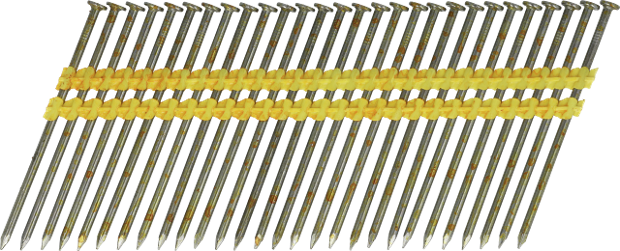

3,1mm gladde stripspijker, blank, Sencoted

Lees meer Lees minder

Applications

Constructie, Spanten, Houtconstructies

Lees meer Lees minder

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Artikelnummer: HD59APBSR
GTIN: 8715274161235

Technical specifications

Rolhoek: 21 °
Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte

Fastener specifications

Afwerking: Blank standaard breuksterkte
Coating: Sencoted
Toepassingsomgeving: Binnen
Nageltype: Rondkop stripspijker
Nagelkop type: Volle ronde kop
Spijkerschacht type: Gladde schacht
Punt type: Diamant
Punthoek: 40 °
Spijker diameter: 3.1 mm
Aantal bevestigingsmiddelen per strip/rol: 29 - 31
Spijker lengte: 90.0 mm

CeSpecifications

Karakteristieke kop doortrek parameter: 30.1 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: HD59APBSR
Coating type: Coating type 3
Kop oppervlakte: 30.0 mm
Karakteristieke buigmoment: 2570.0 Nmm
Karakteristieke breuksterkte: 633.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 3.1 N/mm²

Non-technical specifications

Verpakkingshoeveelheid: 2000

Logistical specifications

Nettogewicht: 10.91 kg

Gerelateerde tools

Zie alle producten

Downloads

HD59APBSR_nl_CommercialProductSheet_1.9_1752329514282 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 123 Kb
DOP VS-CPR-201305-S028 PDF 123 Kb
HD59APBSR_nl_DeclarationOfPerformanceDoP_1.0eu_1748513103038 PDF 62 Kb
