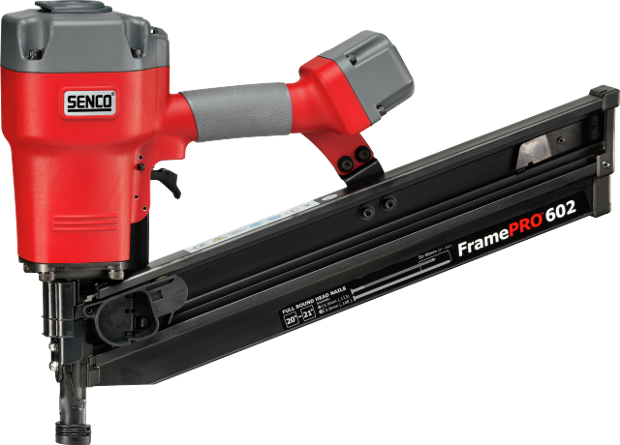

FramePro602, FRH-rondkop spijkermachine, TF ( restrictive )

tap image to zoom

Description

Deze rondkop constructie spijkermachine biedt alle belangrijke eigenschappen, zoals een gevoelige veiligheid, robuuste aluminium behuizing, de kracht om een brede range spijkers te verwerken en een recht-in-lijn magazijn voor uitgekiende balance en zicht op uw werk.

Lees meer Lees minder

Applications

Constructie, Ondervloeren, Bekleding, Vlonders, Gevelbekleding, Hekwerk, Palleten en kratten

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 1E2002N
GTIN: 0741474305085
Type: FramePro602

Technical specifications

Rolhoek: 21 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden
Activering instelling: Restrictive
Magazijn capaciteit: 60
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 283.2 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 97.0 Lpa
Geluidskrachtniveau: 100.0 Lwa
Trillingniveau: 3.5 m/s2

Fastener specifications

Nageltype: Rondkop stripspijker
Kop diameter: 6.6 - 7.65 mm
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 50 - 90 mm
Spijker gladde schacht diameter: 2.87 - 3.8 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 50 - 75 mm
Spijker geringde schacht diameter: 2.87 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 75 mm
Schroef schacht nageldiameter: 2.87 - 3.1 mm
Gedraaide schacht type: Ballistische schacht
Spijker gedraaide schacht lengte: 50 - 90 mm
Spijker gedraaide schacht diameter: 2.87 - 3.1 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 106 x 508 x 337 mm
Inclusief koffer: ja

Logistical specifications

Nettogewicht: 3.81 kg

Gerelateerde Fasteners

Indoor

Downloads

Manual SENCO Framepro602 PDF 8 Mb
Manual SENCO stripnailers PDF 25 Mb
1E2002N_nl_CommercialProductSheet_1.7_1752320280998 PDF 2 Mb
