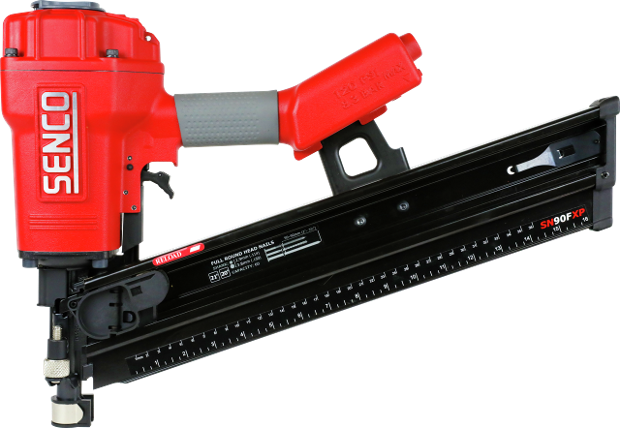

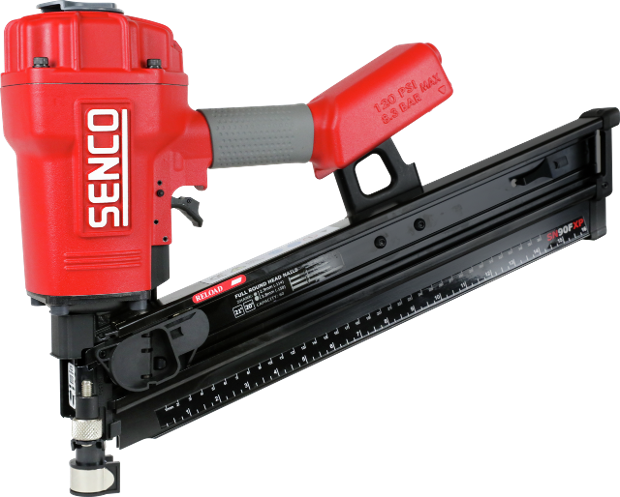

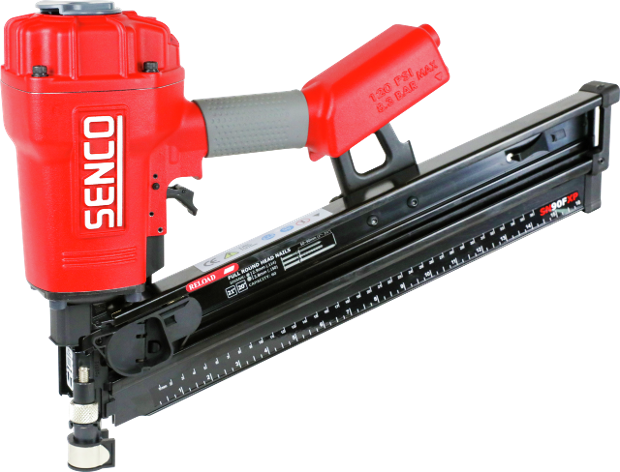

SN90FXP, rond kop spijkermachine

tap image to zoom

Description

De SN90FXP rond kop constructie spijkermachine is ontworpen met de professional in gedachte. XtremePro modellen zijn zowel intern als extern verbeterd om de levensduur en het gebruikscomfort extra te verhogen. Deze compacte constructie spijkermachine is licht te bedienen en ontziet de arm. Het 20° korte, recht-in-lijn magazijn geeft excellente beweegruimte, balance en zicht op het werk. Hij verwerkt spijkers van 2,87 tot 3,8mm dikte en is daarmee geschikt voor elk werk.

Lees meer Lees minder

Applications

Constructie, Ondervloeren, Bekleding, Vlonders, Gevelbekleding, Hekwerk, Palleten en kratten

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 2K2001N
GTIN: 0741474305528
Type: SN90FXP

Technical specifications

Rolhoek: 21 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden
Activering instelling: Dual
Magazijn capaciteit: 70
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 283.2 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 96.0 Lpa
Geluidskrachtniveau: 101.0 Lwa
Trillingniveau: 4 m/s2

Fastener specifications

Nageltype: Rondkop stripspijker
Kop diameter: 6.6 - 7.65 mm
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 50 - 90 mm
Spijker gladde schacht diameter: 2.87 - 3.8 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 50 - 75 mm
Spijker geringde schacht diameter: 2.87 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 75 mm
Schroef schacht nageldiameter: 2.87 - 3.1 mm

Non-technical specifications

Garantie: 5 jaar
Afmetingen (DxWxH): 106 x 508 x 337 mm

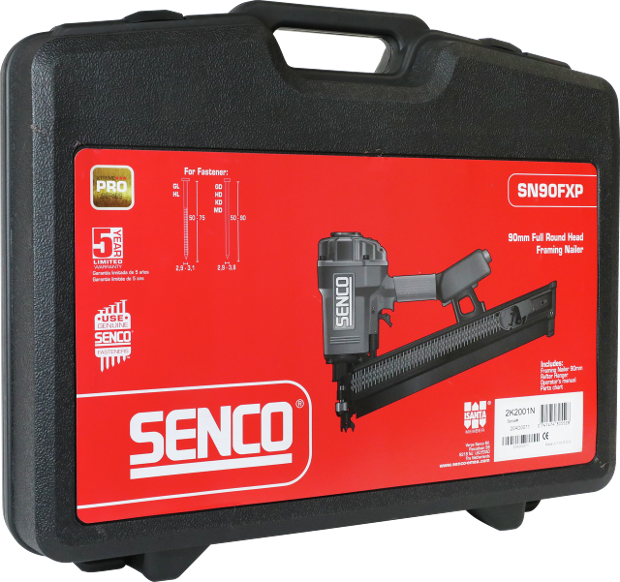

Inclusief koffer: ja

Logistical specifications

Nettogewicht: 3.81 kg

Gerelateerde Fasteners

Downloads

Manual SENCO stripnailers PDF 25 Mb
Manual SENCO Stripnailers PDF 24 Mb
Part chart SENCO FRH framing nailer SN90FXP PDF 1 Mb
2K2001N_nl_CommercialProductSheet_1.7_1752257092214 PDF 2 Mb
