CoilPro32, trommelspijkermachine

tap image to zoom

Description

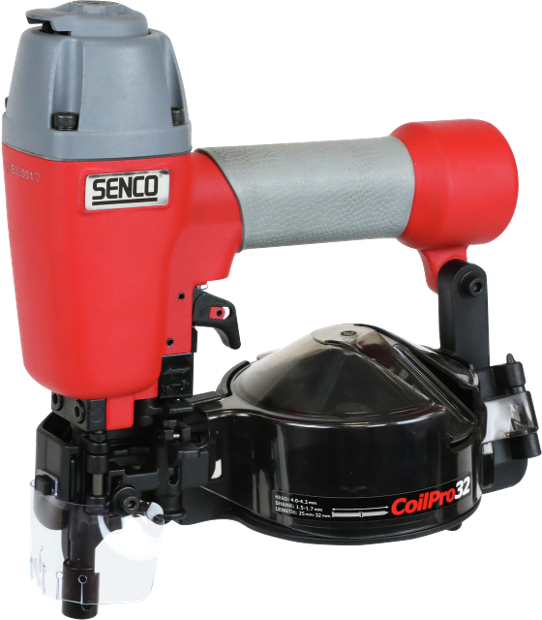

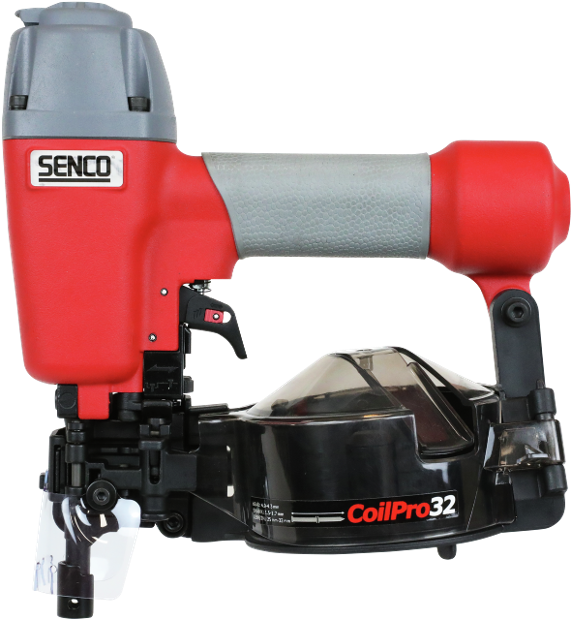

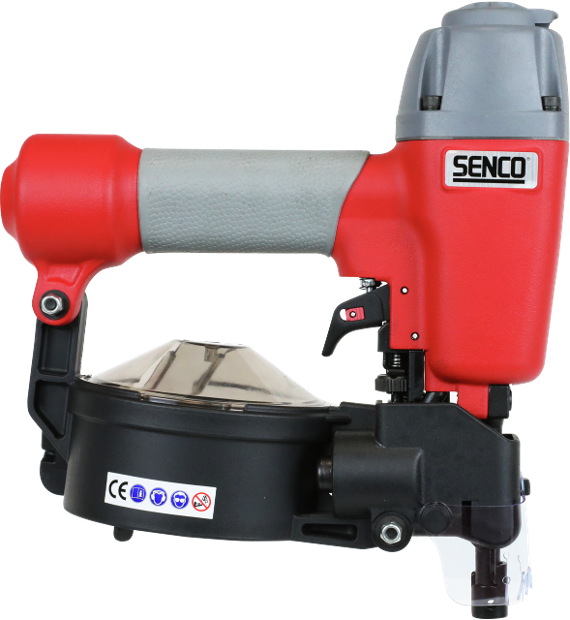

De lichtgewicht en goed gebalanceerde CoilPro32 trommelspijkermachine schiet 0° draad gebonden trommelspijkers met een diameter van 1,5-1,7mm en een lengte van 25-32mm. De machine weegt slechts 1,4 kg tool, heeft een diepte instelling en een instelbare trekker. Ook heeft de CoilPro32 een 360° draaibare uitlaat.

Lees meer Lees minder

Applications

Palleten en kratten, Hekwerk, Gevelbekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 8Z2001N
GTIN: 8718035014122
Type: CoilPro32

Technical specifications

Rolhoek: 0 °
Rol type: Conisch
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Activering instelling: Selectable
Magazijn capaciteit: 300
Luchtaansluiting: 1/4" inwendig
Luchtverbruik bij 60 schoten per minuut: 40.2 l/m
Werkdruk: 5 - 7.5 bar
Geluidsdrukniveau: 80.8 Lpa
Geluidskrachtniveau: 93.8 Lwa
Trillingniveau: 1.91 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 25 - 32 mm
Spijker gladde schacht diameter: 1.6 - 1.6 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 110 x 212 x 257 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 1.4 kg

Gerelateerde Fasteners

Indoor

Downloads

Manual SENCO coilnailer CoilPro32 PDF 4 Mb
Part chart SENCO coilnailer CoilPro32 PDF 1 Mb
8Z2001N_nl_CommercialProductSheet_1.3_1752278656962 PDF 2 Mb
