SCN34, trommelspijkermachine, dual

tap image to zoom

Description

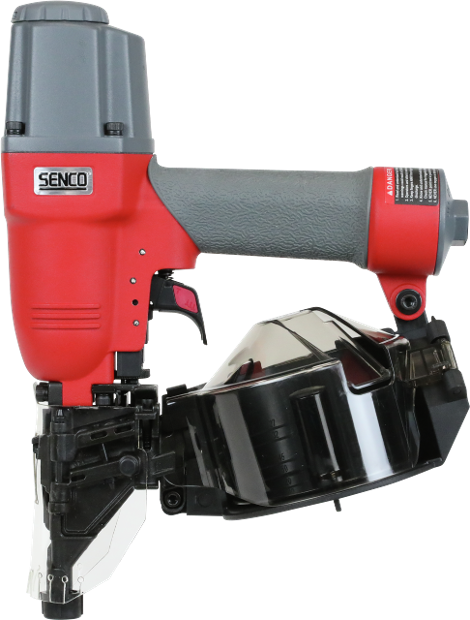

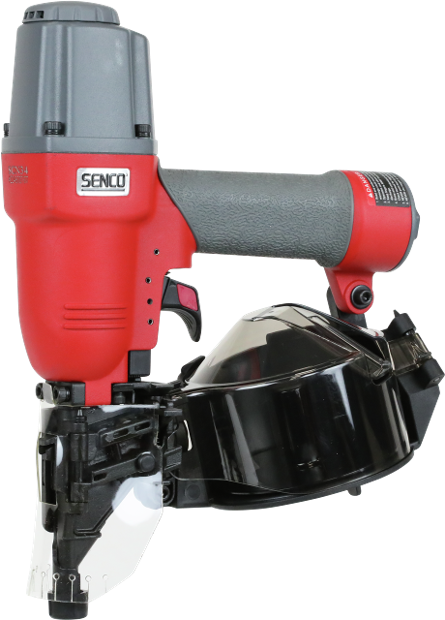

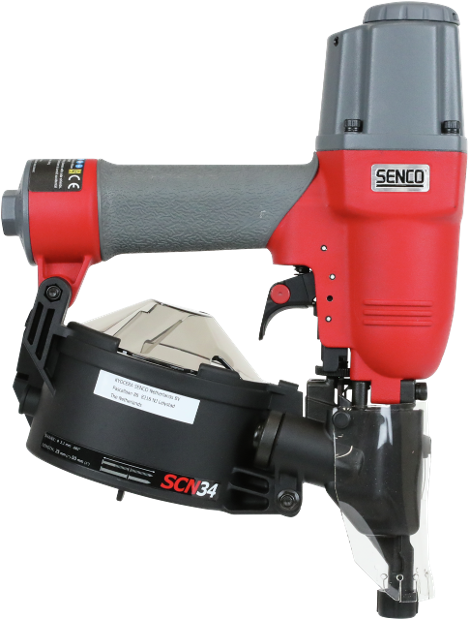

De SCN34 is met zijn lichtgewicht en compacte ontwerp makkelijk te manouvreren en hij schiet spijkers van 25mm tot 50mm lengte.

Lees meer Lees minder

Applications

Palleten en kratten, Gevelbekleding, Houtconstructies

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: SCN34
GTIN: 8715274012261
Type: SCN34

Technical specifications

Rolhoek: 16 °
Rol type: Conisch
Rol type alternatief: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 9mm
Activering instelling: Selectable
Magazijn capaciteit: 400
Schoten / Seconde: 4
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 43.8 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 83.1 Lpa
Geluidskrachtniveau: 94.6 Lwa
Trillingniveau: 3.81 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 25 - 50 mm
Spijker gladde schacht diameter: 1.6 - 2.1 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 25 - 50 mm
Spijker geringde schacht diameter: 1.6 - 1.6 mm
Pitch min: 6.0 mm
Pitch max: 6.0 mm
Max buitendiameter rol: 100 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 108 x 260 x 302 mm

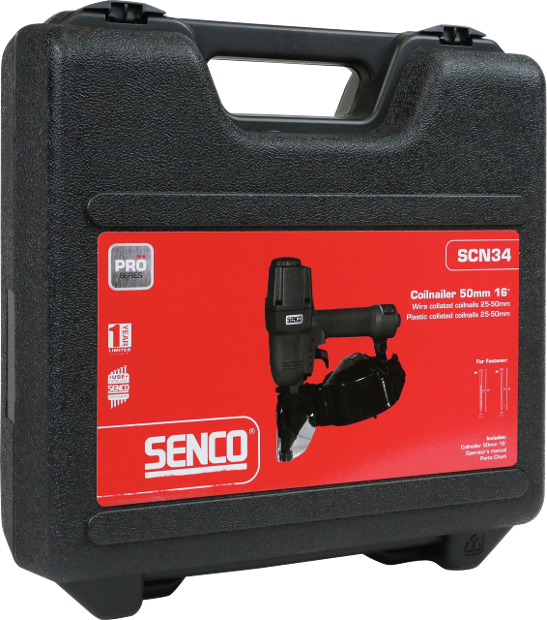

Inclusief koffer: ja

Logistical specifications

Nettogewicht: 1.55 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN34 PDF 2 Mb
SCN34_nl_CommercialProductSheet_1.5_1752238503286 PDF 2 Mb
