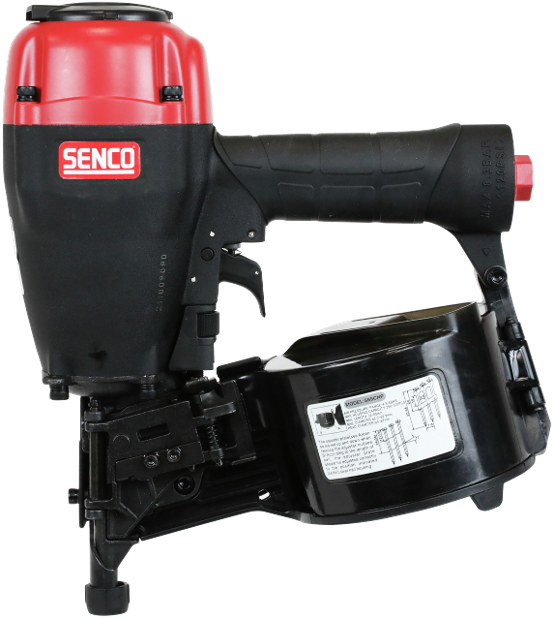

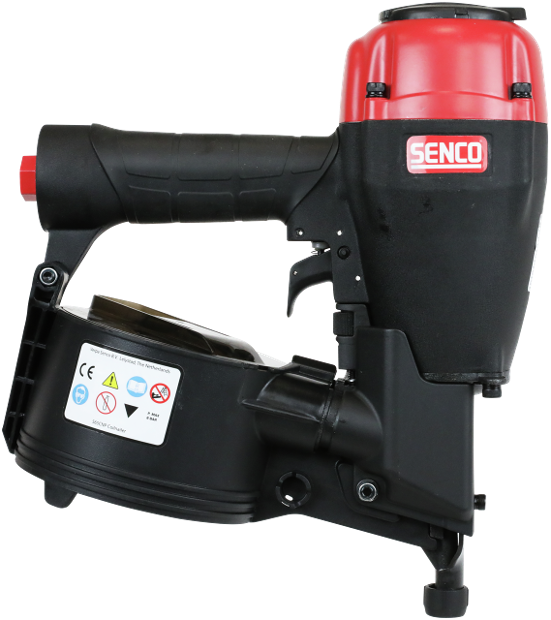

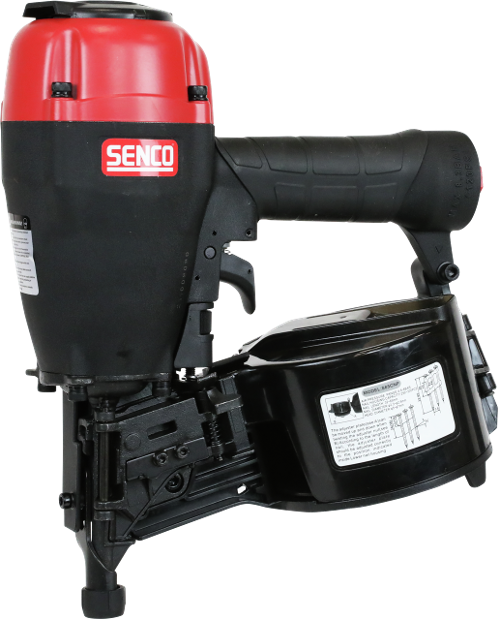

S65CNP, trommelspijkermachine, restrictive

tap image to zoom

Description

De SemiPro S65CNP is een pneumatische trommelspijkermachine voor de "zwaardere" toepassingen. Deze trommelspijkermachine is ontworpen om spijkers te verwerken met een diameter van 2,3 tot 2,9mm en een lengte van 32 tot 65mm. Deze SemiPro spijkermachine wordt vooral gebruikt voor het bevestigen van wanden en houtconstructies. De S65CNP heeft een magnesium behuizing welke zorgt een hoge sterkte -en gewichtsverhouding.

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: SemiPro
Artikelnummer: 8G2001N
GTIN: 8715274168616
Type: S65CNP

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 16mm
Activering instelling: Restrictive
Magazijn capaciteit: 275
Luchtaansluiting: 1/4" inwendig
Luchtverbruik bij 60 schoten per minuut: 220.0 l/m
Werkdruk: 4.9 - 8.3 bar
Geluidsdrukniveau: 91.0 Lpa
Geluidskrachtniveau: 104.0 Lwa
Trillingniveau: 1.5 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 32 - 65 mm
Spijker gladde schacht diameter: 2.3 - 2.87 mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 300 x 304 x 128 mm

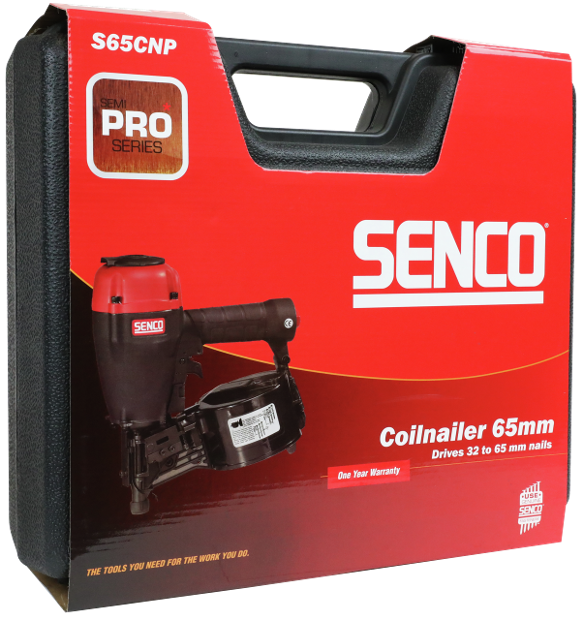

Inclusief koffer: ja

Logistical specifications

Nettogewicht: 2.49 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO SemiPro coilnailer S65CNP PDF 15 Mb
8G2001N_nl_CommercialProductSheet_1.5_1752326580624 PDF 2 Mb
