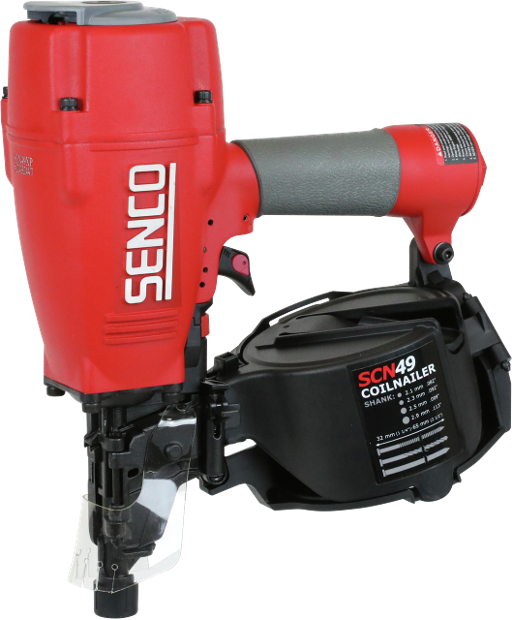

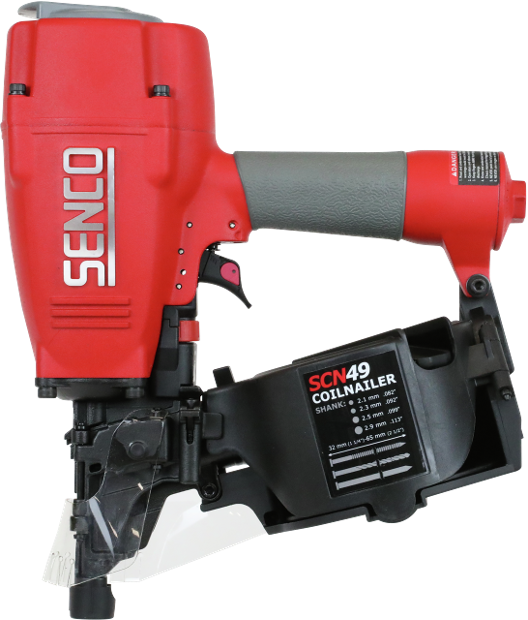

SCN49XP, trommelspijkermachine, dual

tap image to zoom

Description

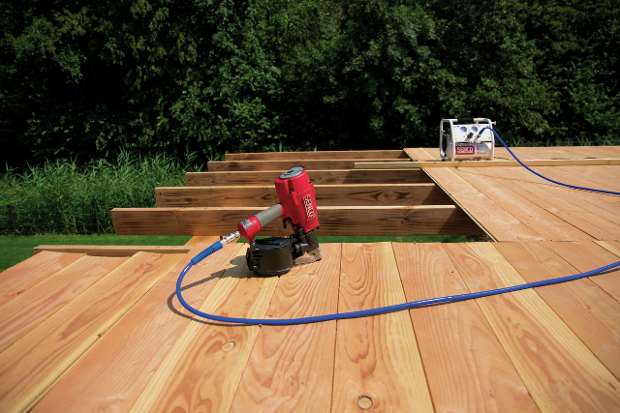

De SCN49XP is jouw meest optimale, gebalanceerde en krachtige trommelspijkermachine. De machine is multifunctioneel en overal inzetbaar, zoals bij de montage van Red Cedar, ondervloeren en panlatten Deze XtremePro machine verwerkt gladde, geringde en schroefspijkers met een diameter van 2,1mm tot 2,9mm en een lengte van 32mm tot en met 65mm, zowel draad als kunststof gebonden. Deze trommelspijkermachine is geschikt voor dagelijks en betrouwbaar gebruik en heeft een instelbare trekker (BF/TF), transparant magazijn en een nauwkeurige diepte instelling.

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 5J2001N
GTIN: 0741474111365
Type: SCN49XP

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 16mm
Activering instelling: Selectable
Magazijn capaciteit: 375
Schoten / Seconde: 3
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 111.0 l/m
Werkdruk: 5 - 8.3 bar
Geluidsdrukniveau: 86.0 Lpa
Geluidskrachtniveau: 96.0 Lwa
Trillingniveau: 3.09 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 32 - 65 mm
Spijker gladde schacht diameter: 2.1 - 2.87 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 32 - 65 mm
Spijker geringde schacht diameter: 2.1 - 2.5 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 32 - 65 mm
Schroef schacht nageldiameter: 2.5 - 2.5 mm
Pitch min: 8.5 mm
Pitch max: 8.5 mm
Max buitendiameter rol: 120 mm

Non-technical specifications

Garantie: 5 jaar
Afmetingen (DxWxH): 132 x 314 x 304 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.31 kg

Gerelateerde Fasteners

Downloads

Manual SENCO coilnailer SCN49XP PDF 5 Mb
Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO SCN49XP PDF 13 Mb
5J2001N_nl_CommercialProductSheet_1.3_1748456373407 PDF 2 Mb
