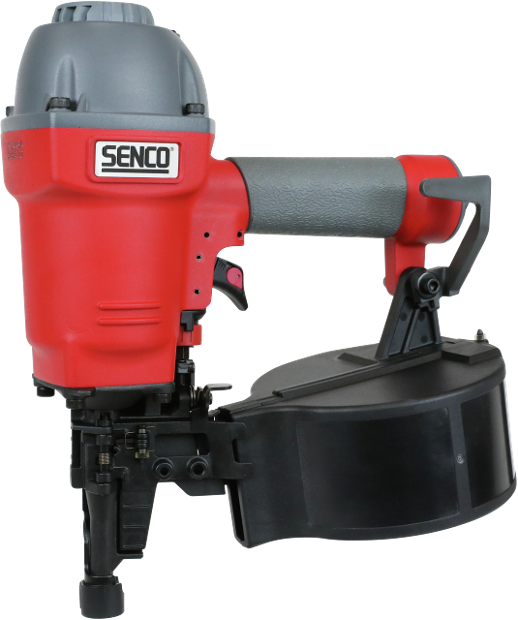

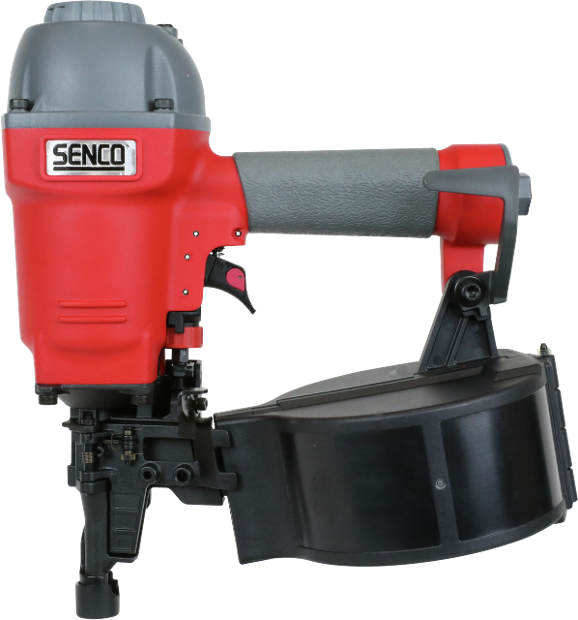

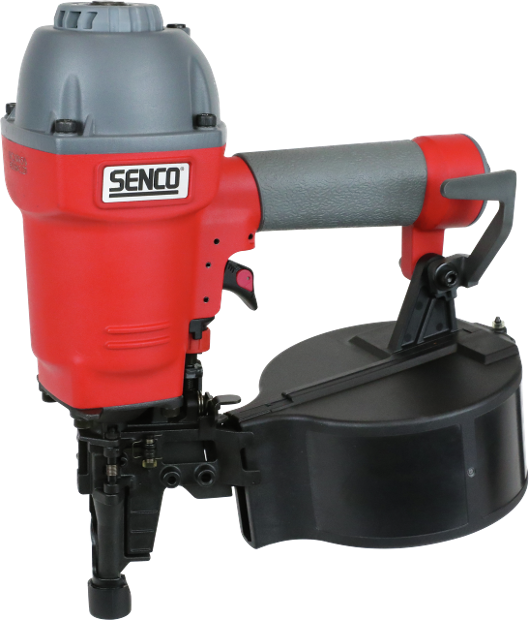

SCN650, trommelspijkermachine, dual

tap image to zoom

Description

De SCN650 trommelspijkermachine is een 65mm 0-graden trommelspijkermachine, Deze nieuwe lichtgewicht trommelspijkermachine is speciaal ontworpen voor professionals die nu 0-graden plastic verbonden trommelspijkers verwerken van een ander merk en toch de vertrouwde SENCO machine kwaliteit willen.

Lees meer Lees minder

Applications

Bekleding, Gevelbekleding, Verpakking, Hekwerk, Ondervloeren, Planken

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 7P2001N
GTIN: 8715274046501
Type: SCN650

Technical specifications

Rolhoek: 0 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden 16mm
Activering instelling: Selectable
Magazijn capaciteit: 300
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 106.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 85.3 Lpa
Geluidskrachtniveau: 98.3 Lwa
Trillingniveau: 2.99 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 32 - 65 mm
Spijker gladde schacht diameter: 2.03 - 2.87 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 32 - 65 mm
Spijker geringde schacht diameter: 2.03 - 2.03 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 32 - 65 mm
Schroef schacht nageldiameter: 2.03 - 2.87 mm
Pitch min: 6.3 mm
Pitch max: 6.3 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 145 x 316 x 300 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.3 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN650 PDF 4 Mb
7P2001N_nl_CommercialProductSheet_1.1_1749833034601 PDF 2 Mb
