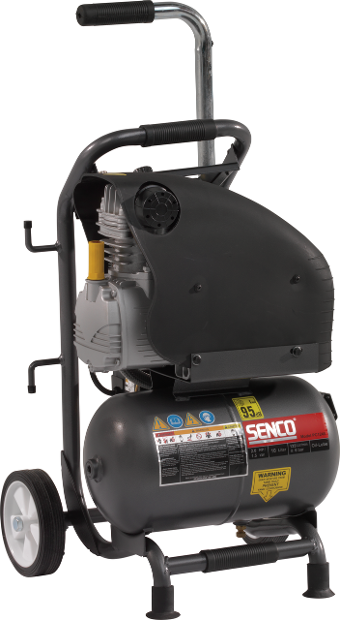

PC1249EU, midi compressor

tap image to zoom

Description

De PC1249 compressor is ontworpen voor alle toepassingen met betrekking tot pneumatisch gebruik. Door middel van de grote 10L tank capaciteit is deze compressor ideaal voor situaties waarbij de compressor contiunue moet draaien. De 2PK motor zorgt dat de compressor beschikt over een lucht aanzuigvolume van 201/min.

Lees meer Lees minder

Request information

Specifications

Identifiers

Artikelnummer: PC1249EU
GTIN: 8715274034225
Type: PC1249

Technical specifications

Olievrij: nee
Geluidsarm: nee
Werktemperatuur range: - °C
Frequentie: 50 Hz
Elektrisch stekker type: Continental
Nominaal kracht: 1.5 kW
Geluidsdrukniveau: 88.0 Lpa
Geluidskrachtniveau: 90.0 Lwa
Voltage: 230 V
Rotaties per minuut: 2850 RPM
Nominaal kracht: 2.0 HP
Tankcapaciteit: 10.0 l
Max. output druk: 9.0 bar
Aanzuigvolume: 201 l/m
Netto opbrengst 6 bar: 133 l/min
Aantal luchtaansluitingen: 1
Luchtaansluiting type: Universal coupler

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 360 x 390 x 680 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 30.0 kg

Downloads

Manual SENCo PC1249, PC1251 PDF 10 Mb
Part chart SENCO PC1249 PDF 530 Kb
PC1249EU_nl_CommercialProductSheet_1.1_1751507331866 PDF 1 Mb
