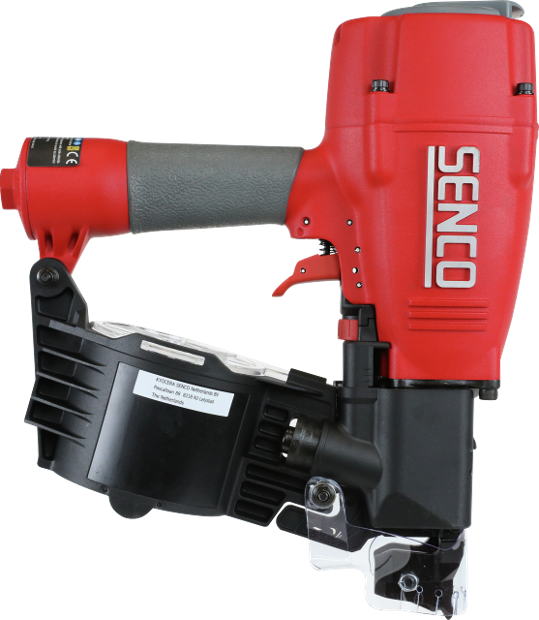

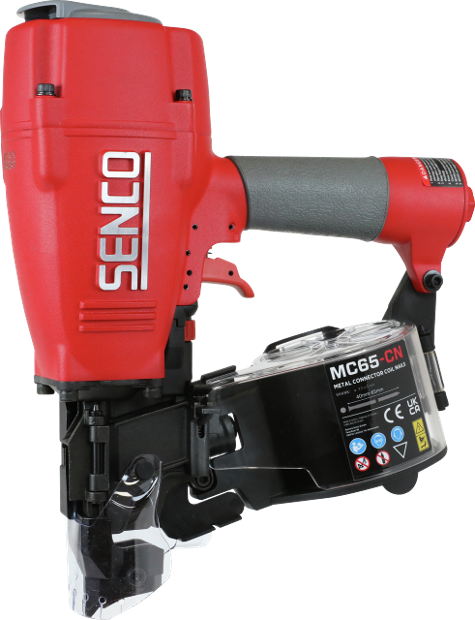

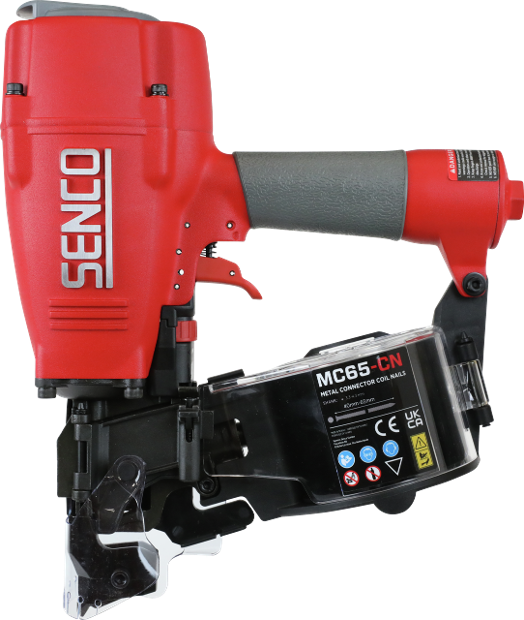

MC65-CN Hoekanker trommelspijkermachine

tap image to zoom

Description

De SENCO MC65-CN is een compacte en pneumatische machine voor hoekankers, ontworpen voor precisie en kracht. Verwerkt ankernagels van 38 tot 65 mm en het innovatieve neusstuk zorgt voor een nauwkeurige plaatsing van de nagel in de voorgeboorde gaten van hoekankers. Deze lichtgewicht en ergonomisch uitgebalanceerde machine is gemaakt van duurzame materialen van hoge kwaliteit en biedt de kracht om ankernagels in de hardste houtsoorten te schieten.

Lees meer Lees minder

Applications

Ankers, Balkdragers

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 16VS2001N
GTIN: 8715274254425
Type: MC65-CN

Technical specifications

Rolhoek: 16 °
Olievrij: nee
Werktemperatuur range: -7 - 49 °C
Verbindingstype: Plastic gebonden
Activering instelling: Single shot
Slagkracht: 75 J
Magazijn capaciteit: 100
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 96.0 l/m
Werkdruk: 5 - 8 bar
Geluidsdrukniveau: 93.7 Lpa
Geluidskrachtniveau: 101.0 Lwa

Fastener specifications

Nageltype: Trommelspijkers
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 40 - 65 mm
Spijker geringde schacht diameter: 3.3 - 4.3 mm

Non-technical specifications

Garantie: 1 jaar
Verpakkingsinhoud: Handleiding, Onderdelentekening
Afmetingen (DxWxH): 100 x 278 x 317 mm
Inclusief koffer: nee

Logistical specifications

Brutogewicht: 3.375 kg
Nettogewicht: 2.3 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
MC65-CN Part Chart PDF 1 Mb
16VS2001N_nl_CommercialProductSheet_1.6_1752755446870 PDF 2 Mb
