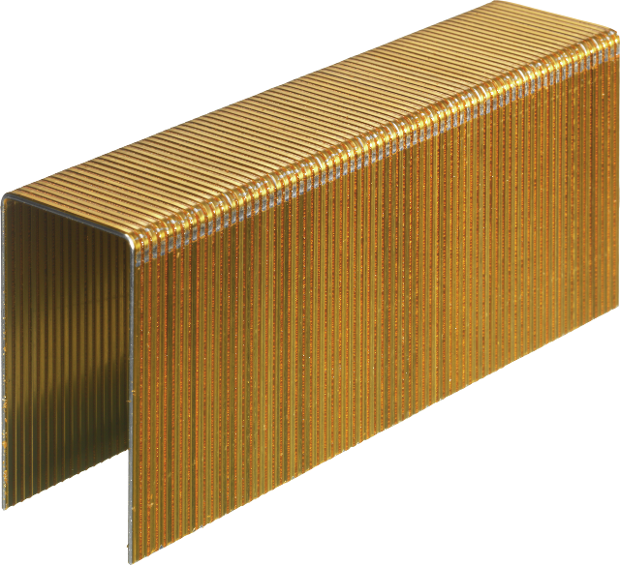

P niet 38mm

tap image to zoom

Description

P niet AISI304, Sencoted

Lees meer Lees minder

Applications

Bekleding, Daken, Golfkarton toepassingen, Isolatieplaten, Meubelen, Kasten, Constructie, Hoekverbinding

Lees meer Lees minder

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Artikelnummer: P17BGB
GTIN: 8715274289922

Technical specifications

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Gauge: 16

Fastener specifications

Coating: Sencoted
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 70 °
Niet type: Zware nieten
Niet-dikte: 1.4 mm
Niet-draad afmeting: 1.51 mm
Niet-kroon breedte: 26.3 mm
Niet-binnen breedte: 23.42 mm
Niet serie: P niet
Aantal bevestigingsmiddelen per strip/rol: 69 - 71
Niet-lengte: 38.0 mm

CeSpecifications

Karakteristieke kop doortrek parameter: 38.43 N/mm²
DOP No: P17BGB
Karakteristieke buigmoment: 590.0 Nmm
Karakteristieke breuksterkte: 800.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 4.5 N/mm²

Non-technical specifications

Verpakkingshoeveelheid: 5000

Gerelateerde tools

Downloads

P17BGB_nl_CommercialProductSheet_1.8_1752316827602 PDF 1 Mb
P17BGB_nl_DeclarationOfPerformanceDoP_1.0eu_1748306983612 PDF 61 Kb
