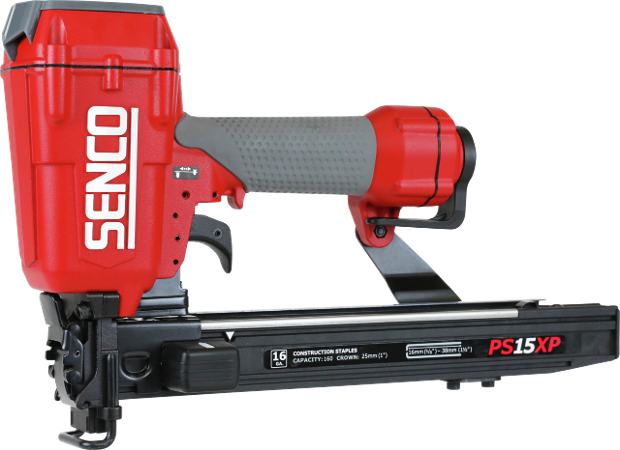

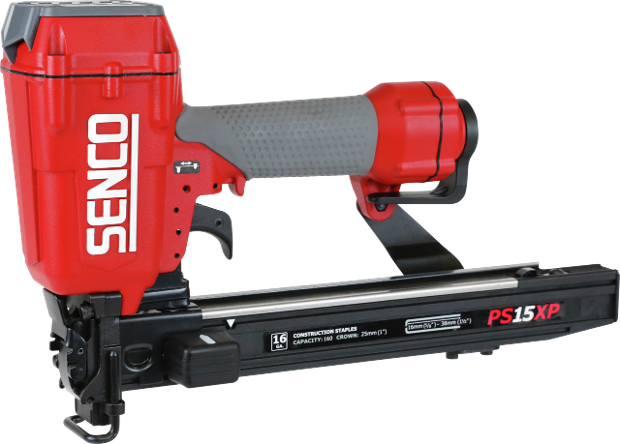

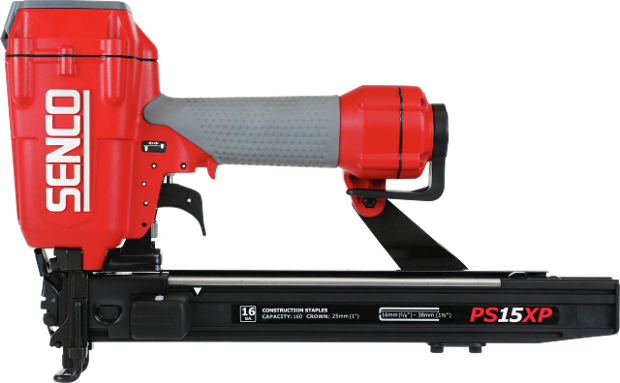

PS15XP, Brede kroon nietmachine

tap image to zoom

Description

De pneumatische PS15XP verwerkt brede kroon nieten van 25,4mm met een lengte van 16 tot 38mm. Deze nietmachine maakt deel uit van de XtremePro-serie en is ontwikkeld voor extreme prestaties en een lange levensduur. Het ontwerp van de machine zorgt voor een superieure controle over het bevestigingsmiddel en een ongeëvenaarde productiviteit.

Lees meer Lees minder

Applications

Hoekverbinding, Golfkarton toepassingen, Isolatieplaten, Panlat

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 9T2001N
GTIN: 8715274236148
Type: PS15XP

Technical specifications

Rolhoek: 0 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Lijm gebonden
Activering instelling: Dual
Magazijn capaciteit: 160
Schoten / Seconde: 10
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 90.0 l/m
Werkdruk: 4.8 - 8.3 bar
Gauge: 16

Fastener specifications

Niet type: Zware nieten
Niet-lengte: 16 - 38 mm
Niet serie: P niet

Non-technical specifications

Garantie: 5 jaar
Afmetingen (DxWxH): 105 x 387 x 229 mm
Inclusief koffer: ja

Logistical specifications

Nettogewicht: 2.3 kg

Gerelateerde Fasteners

Downloads

Manual SENCO PS15XP, PS20XP PDF 3 Mb
Manual SENCO Staplers PDF 31 Mb
Part chart SENCO PS15XP PDF 922 Kb
9T2001N_nl_CommercialProductSheet_1.1_1752011206202 PDF 2 Mb
