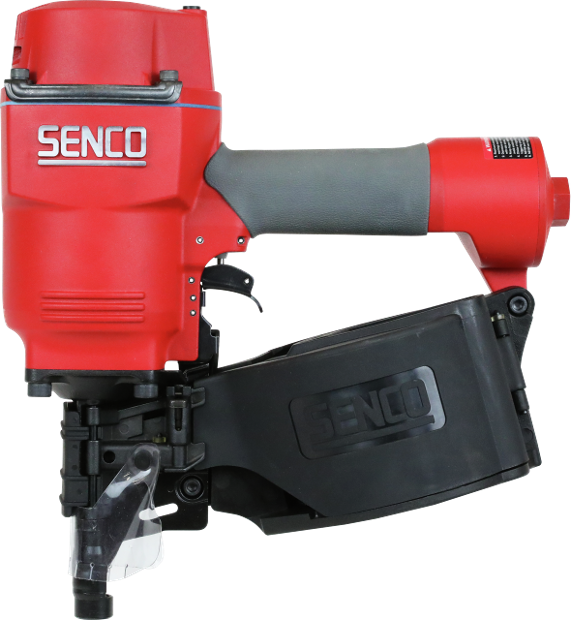

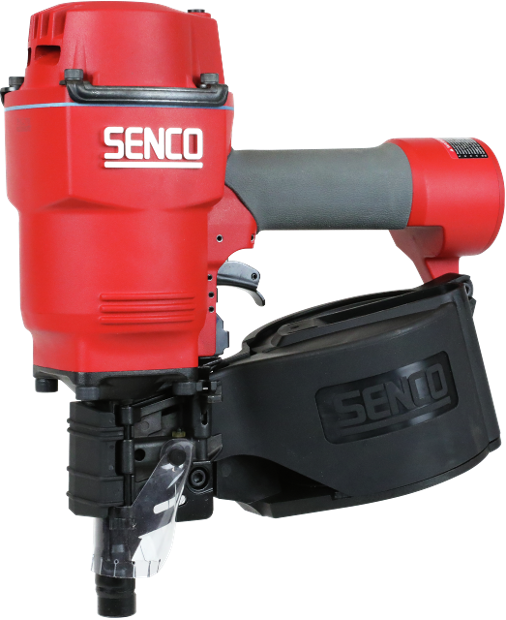

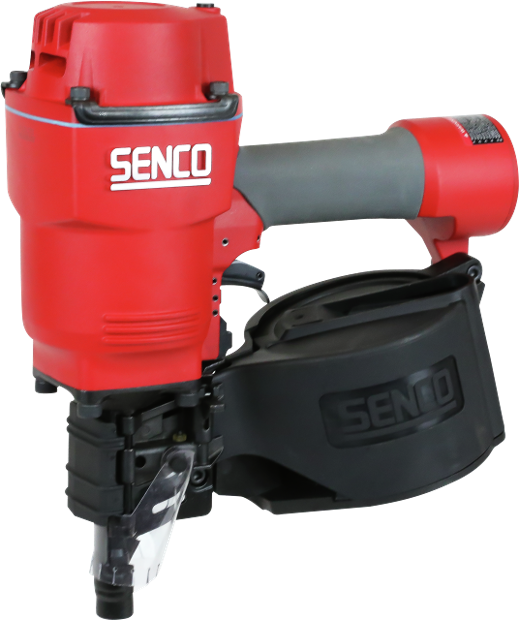

PAL70 Duplex, pallet trommelspijkermachine, dual

tap image to zoom

Description

De Pal70 duplex trommelspijkermachine is goed gebalanceerd en krachtig. Ontwikkeld met de meest ruige produktie omstandigheden in gedachte. Verwerkt duplex trommelspijkers, glad, ring en schroef.

Lees meer Lees minder

Applications

Palleten en kratten, Verpakking, Ondervloeren, Constructie, Bekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: PalletPro
Artikelnummer: XL3035
GTIN: 8715274054469
Type: PAL70

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Activering instelling: Dual
Magazijn capaciteit: 300
Schoten / Seconde: 3
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 136.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 95.0 Lpa
Geluidskrachtniveau: 107.0 Lwa
Trillingniveau: 3.8 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 45 - 70 mm
Spijker gladde schacht diameter: 3.3 - 3.3 mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm
Max buitendiameter rol: 121 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 129 x 339 x 319 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 3.62 kg

Gerelateerde Fasteners

Indoor

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO PAL70 Duplex part chart PDF 1 Mb
XL3035_nl_CommercialProductSheet_1.3_1752241785664 PDF 2 Mb
