SCN75, trommelspijkermachine, dual

tap image to zoom

Description

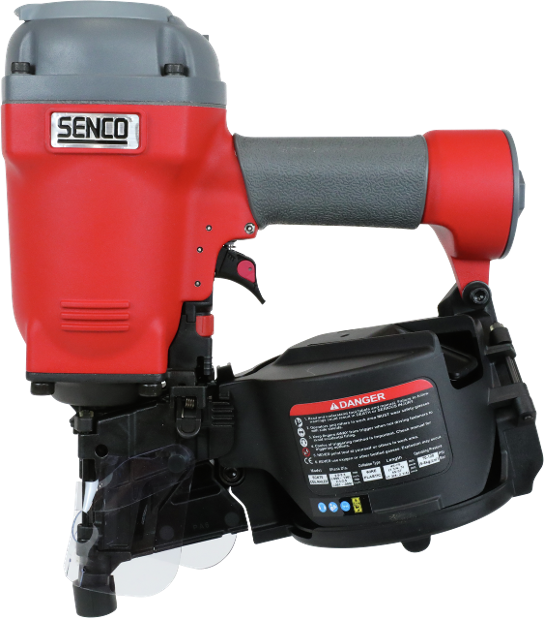

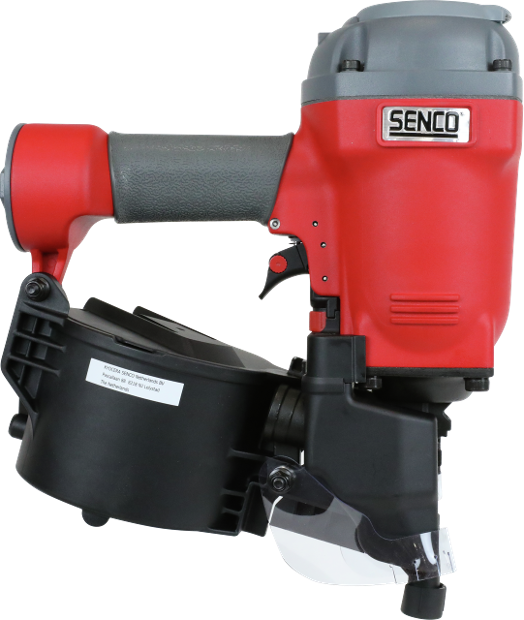

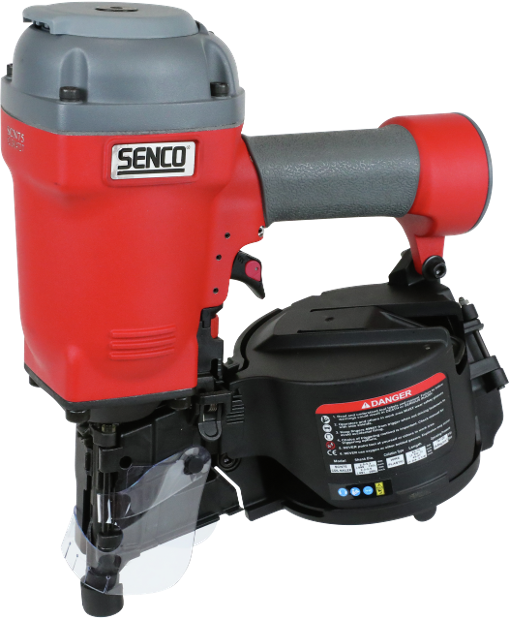

De pneumatische SCN75 coilnailer verwerkt zowel draad- als kunststofgebonden coilnails met een diameter van 2,5 tot 3,3 mm en een lengte van 45 tot 75 mm. Als onderdeel van de Pro Serie is deze coilnaile geschikt voor een breed scala aan toepassingen zoals houtconstructies, plaatdelen, vloeren en pallets.

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: SCN75
GTIN: 8715274015064
Type: SCN75

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 16mm
Activering instelling: Selectable
Magazijn capaciteit: 300
Schoten / Seconde: 3
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 168.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 92.3 Lpa
Geluidskrachtniveau: 100.3 Lwa
Trillingniveau: 3.42 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 45 - 75 mm
Spijker gladde schacht diameter: 2.5 - 3.3 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 45 - 75 mm
Spijker geringde schacht diameter: 2.5 - 2.5 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 45 - 75 mm
Schroef schacht nageldiameter: 2.5 - 3.1 mm
Spijker gedraaide schacht lengte: - mm
Spijker gedraaide schacht diameter: - mm
Spijker ballistische schacht lengte: - mm
Spijker ballistische schacht diameter: - mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm
Max buitendiameter rol: 121 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 132 x 315 x 282 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.82 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN75 PDF 928 Kb
SCN75_nl_CommercialProductSheet_1.1_1748456699166 PDF 2 Mb
