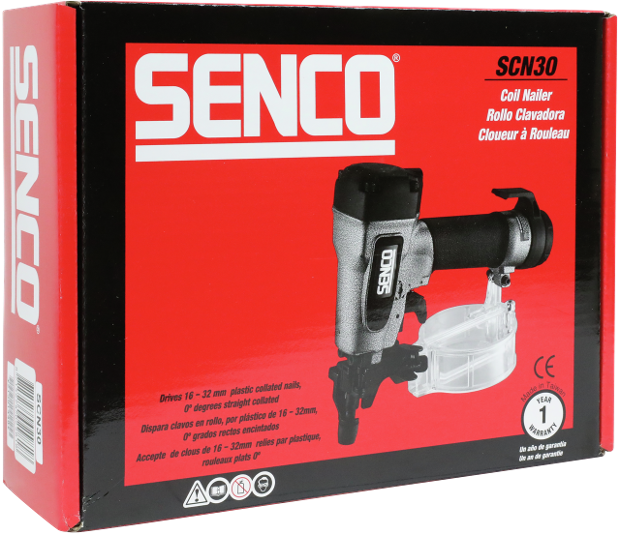

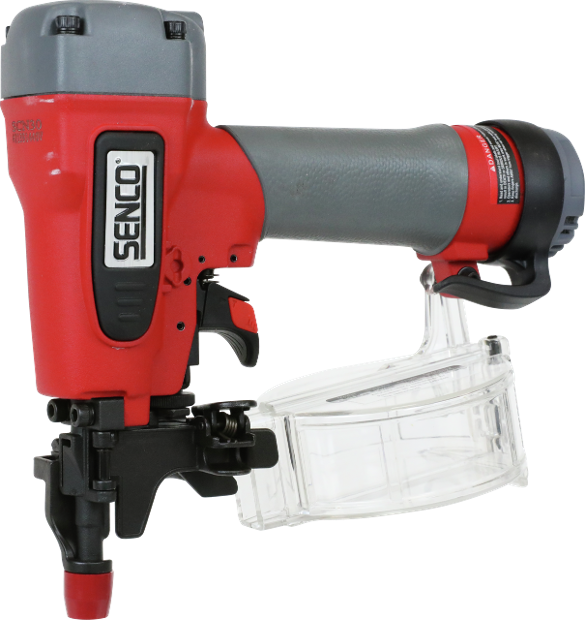

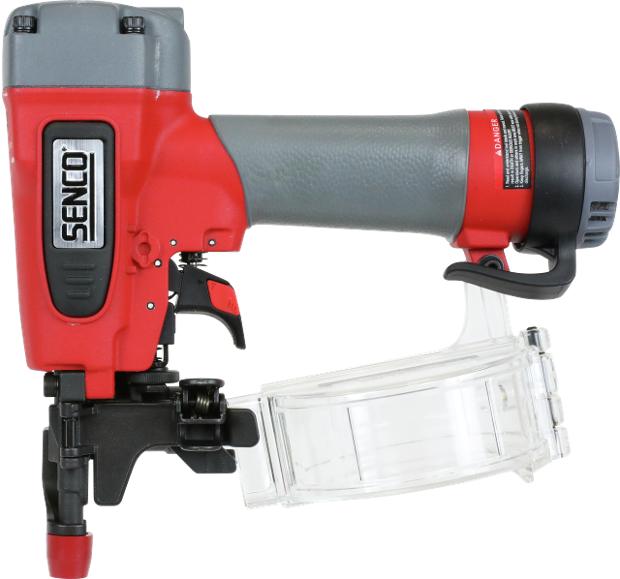

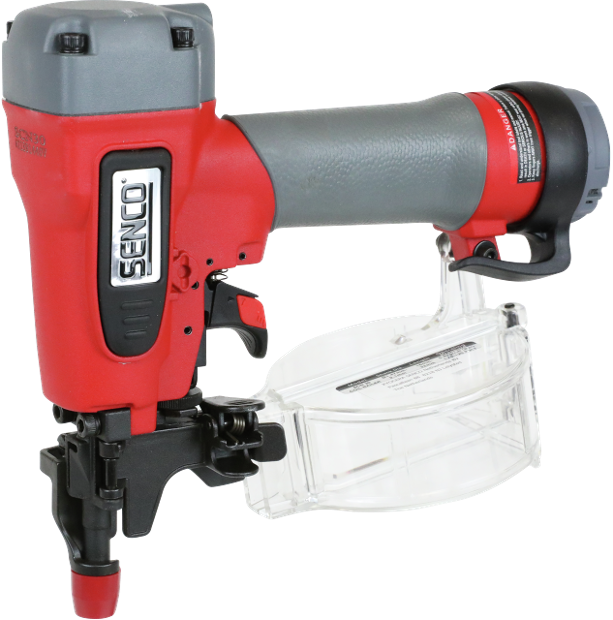

SCN30, trommelspijkermachine, dual

tap image to zoom

Description

De SCN30 trommelspijkermachine is een ultralichte machine van slechts 1,1 kg. De instelbare luchtuitlaat heeft een ingebouwde demper om beschadiging aan het werk te voorkomen.

Lees meer Lees minder

Applications

Meubelen, Tuinbouw

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: SCN30
GTIN: 8715274029818
Type: SCN30

Technical specifications

Rolhoek: 0 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden 9mm
Activering instelling: Selectable
Magazijn capaciteit: 188
Schoten / Seconde: 4
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 42.8 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 79.1 Lpa
Geluidskrachtniveau: 92.1 Lwa
Trillingniveau: 1.89 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 16 - 32 mm
Spijker gladde schacht diameter: 1.6 - 2.1 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 16 - 32 mm
Spijker geringde schacht diameter: 1.6 - 1.6 mm
Pitch min: 6.0 mm
Pitch max: 6.0 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 98 x 211 x 256 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 1.1 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN30 PDF 1 Mb
SCN30_nl_CommercialProductSheet_1.3_1752318606866 PDF 2 Mb
