PAL90, pallet trommelspijkermachine, dual

tap image to zoom

Description

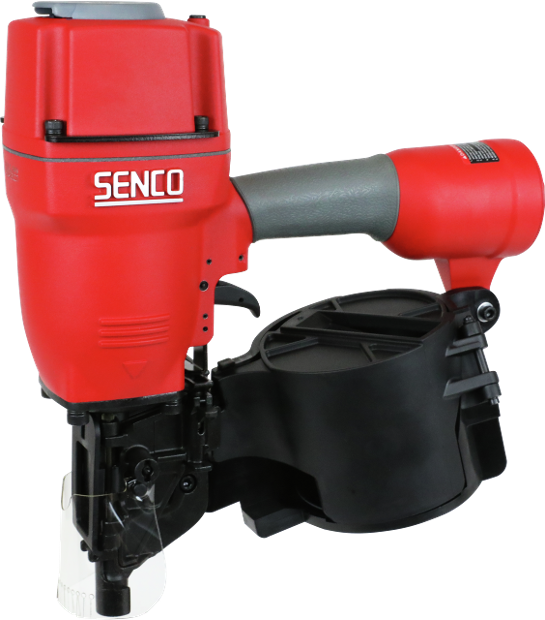

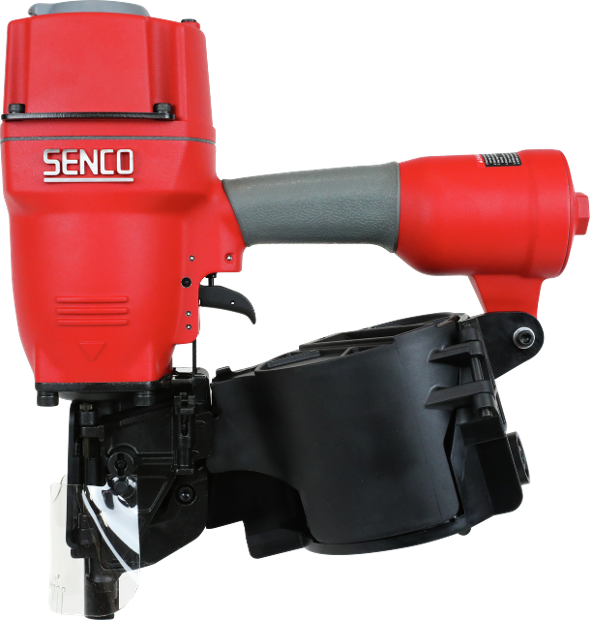

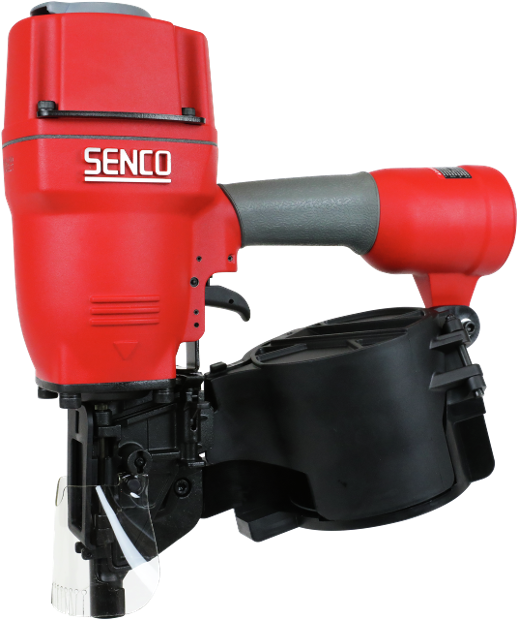

De pneumatische Pal90 spijkermachine heeft de kracht om spijkers met een lengte van 45 tot 90 mm en een diameter van 2,5 tot 3,8 mm in de hardste houtsoorten te verwerken. De machine verwerkt gladde, geringde- en schroefnagels. Met zijn magazijncapaciteit van 300 spijkers (minimale diameter) kunt u zo productief zijn als u wenst.

Lees meer Lees minder

Applications

Palleten en kratten, Verpakking, Ondervloeren, Constructie, Bekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: PalletPro
Artikelnummer: PAL90
GTIN: 8715274017990
Type: PAL90

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Activering instelling: Dual
Magazijn capaciteit: 300
Schoten / Seconde: 2
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 193.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 88.2 Lpa
Geluidskrachtniveau: 101.2 Lwa
Trillingniveau: 3.75 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 45 - 90 mm
Spijker gladde schacht diameter: 2.5 - 3.8 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 45 - 75 mm
Spijker geringde schacht diameter: 2.5 - 2.5 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 45 - 80 mm
Schroef schacht nageldiameter: 2.5 - 3.1 mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm
Max buitendiameter rol: 121 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 129 x 339 x 317 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 3.5 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO Pal90 PDF 2 Mb
PAL90_nl_CommercialProductSheet_1.2_1748505215184 PDF 2 Mb
