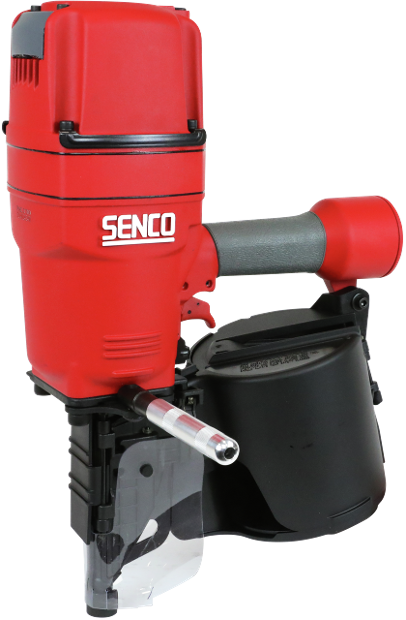

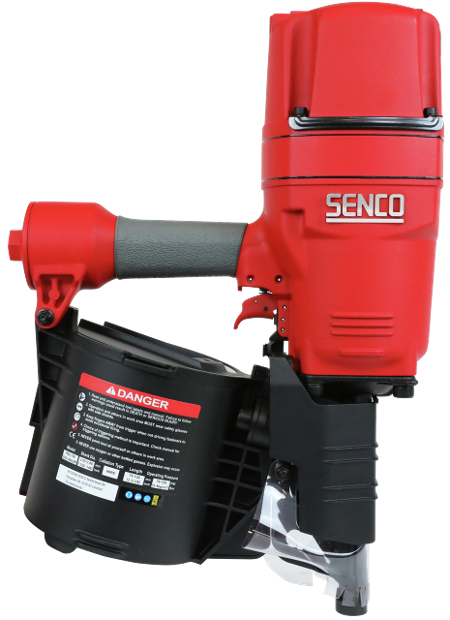

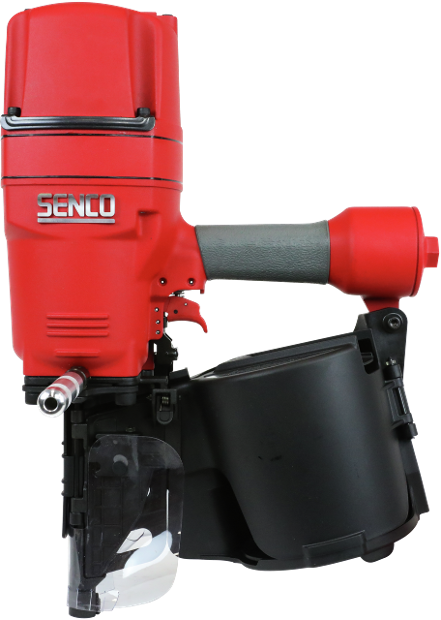

PAL130, pallet trommelspijkermachine, dual

tap image to zoom

Description

De Pal130 trommelspijkermachine heeft de kracht en duurzaamheid om consistent en betrouwbaar tot 3,8x130mm spijkers te verwerken, de hele dag. Het T-handvat is inclusief en helpt om comfortabel en veilig de machine te manouvreren

Lees meer Lees minder

Applications

Palleten en kratten, Verpakking

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: PalletPro
Artikelnummer: 5M2001N
GTIN: 0741474062704
Type: PAL130

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Activering instelling: Dual
Magazijn capaciteit: 225
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 323.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 92.3 Lpa
Geluidskrachtniveau: 105.3 Lwa
Trillingniveau: 5.44 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 75 - 130 mm
Spijker gladde schacht diameter: 3.1 - 3.8 mm
Pitch min: 10.5 mm
Pitch max: 10.5 mm
Max buitendiameter rol: 125 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 154 x 479 x 338 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 5.8 kg

Gerelateerde Fasteners

Indoor

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO Pal130XP PDF 3 Mb
5M2001N_nl_CommercialProductSheet_1.6_1752238038662 PDF 2 Mb
