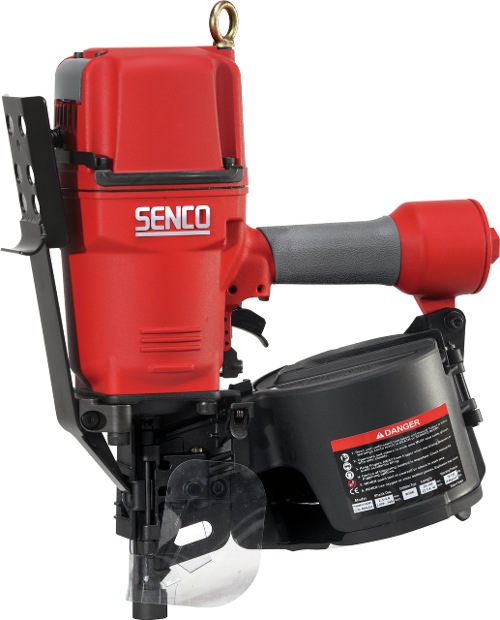

PAL100 met extra veiligheid

tap image to zoom

Description

De Pal100 trommelspijkermachine heeft de kracht en duurzaamheid om consistent en betrouwbaar tot 3,8x100mm spijkers te verwerken, de hele dag. Het T-handvat is inclusief en helpt om comfortabel en veilig de machine te manouvreren. Het extra veiligheidshandvat zorgt ervoor dat de gebruiker altijd 2 handen aan de machine heeft. Het handvat aan de voorzijde dient eerst ingedrukt te worden. Vervolgens kan de neusveiligheid worden ingedrukt. Pas dan wordt er een spijker geschoten. Deze gecombineerde veiligheid leidt tot een veiligere werkomgeving. Tevens beschikt deze PAL100 over een oogbout waarmee de machine kan worden opgehangen aan een SENCO veerbalancer.

Lees meer Lees minder

Applications

Palleten en kratten, Verpakking, Ondervloeren, Constructie, Bekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: PalletPro
Artikelnummer: 5L0021N
GTIN: 0741474104886
Type: PAL100

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Activering instelling: Dual
Magazijn capaciteit: 300
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 323.0 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 89.3 Lpa
Geluidskrachtniveau: 102.3 Lwa
Trillingniveau: 5.35 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 55 - 100 mm
Spijker gladde schacht diameter: 2.5 - 3.8 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 55 - 75 mm
Spijker geringde schacht diameter: 2.5 - 2.5 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 55 - 85 mm
Schroef schacht nageldiameter: 2.5 - 3.1 mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm
Max buitendiameter rol: 121 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 153 x 418 x 338 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 7.09 kg
