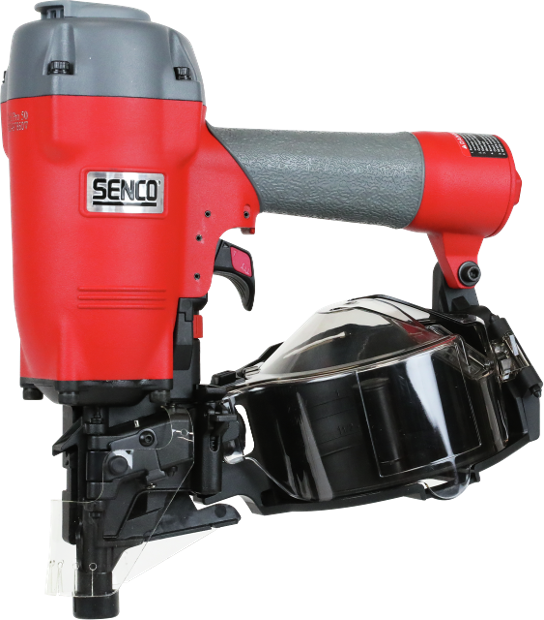

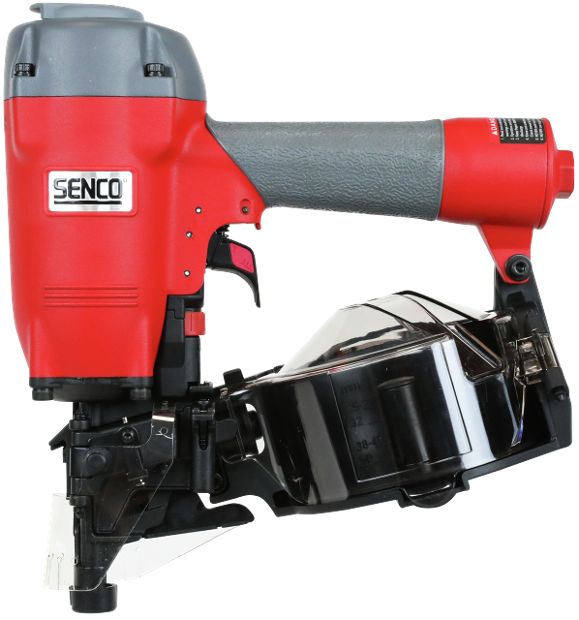

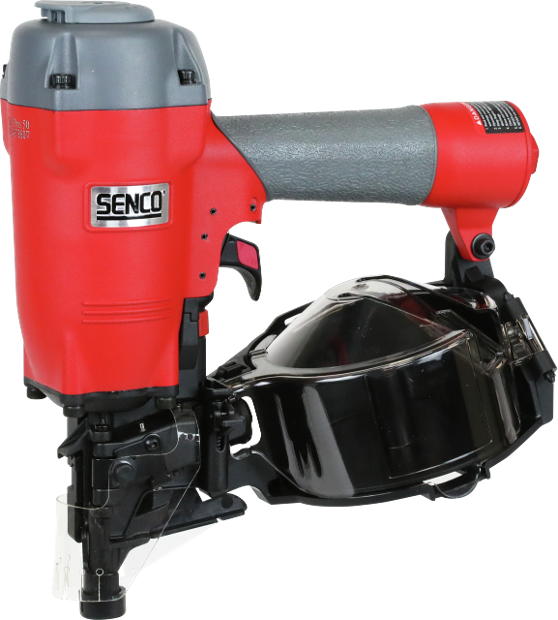

CoilPro50, trommelspijkermachine, trigger of bottomfire

tap image to zoom

Description

De pneumatische CoilPro50 coilnailer is een van de lichtste machines op de markt (2kg) en verwerkt coilnails met een lengte van 32mm tot 50mm. Deze Pro Series coilnailer verwerkt een breder scala aan spijkers waarbij de eenvoudige hoogteverstelling een snelle verandering van spijkerlengtes mogelijk maakt. De grote spijkercapaciteit van de CoilPro50 minimaliseert onderbreking van de productie. De magazijnklep draait naar boven voor eenvoudig herladen in enkele seconden.

Lees meer Lees minder

Applications

Bekleding, Gevelbekleding, Verpakking, Hekwerk, Ondervloeren, Planken

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 4U2001N
GTIN: 8718035007032
Type: CoilPro50

Technical specifications

Rolhoek: 16 °
Rol type: Conisch
Rol type alternatief: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Draad gebonden
Alternatieve verbindingstype: Plastic gebonden 16mm
Activering instelling: Selectable
Magazijn capaciteit: 375
Schoten / Seconde: 3
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 83.2 l/m
Werkdruk: 5 - 8 bar
Geluidsdrukniveau: 87.0 Lpa
Geluidskrachtniveau: 100.0 Lwa
Trillingniveau: 4.98 m/s2

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 32 - 50 mm
Spijker gladde schacht diameter: 2.1 - 2.5 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 32 - 50 mm
Spijker geringde schacht diameter: 2.1 - 2.1 mm
Pitch min: 7.0 mm
Pitch max: 7.0 mm
Max buitendiameter rol: 118 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 128 x 305 x 285 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.0 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO CoilPro50 PDF 5 Mb
4U2001N_nl_CommercialProductSheet_1.4_1752304098737 PDF 2 Mb
