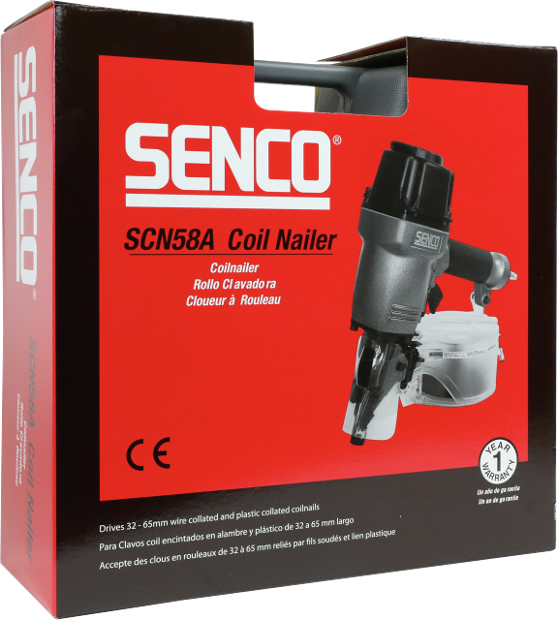

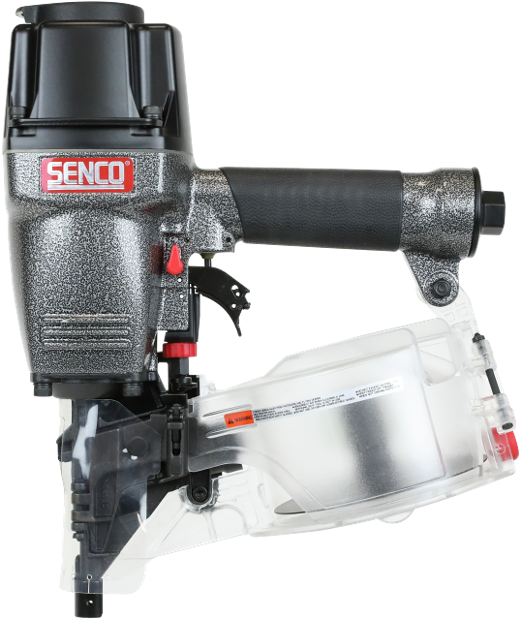

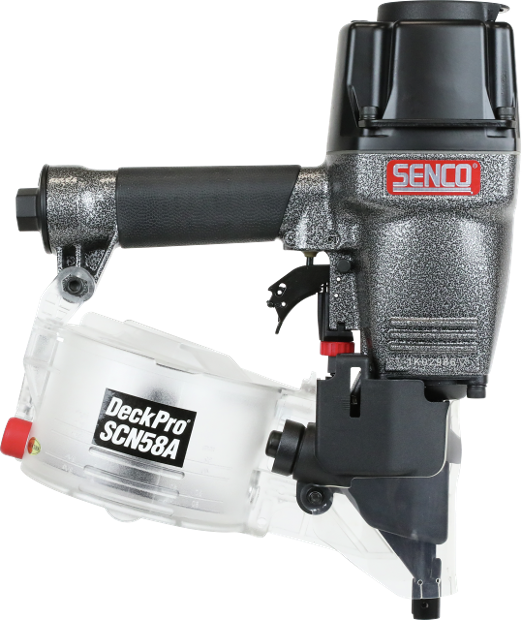

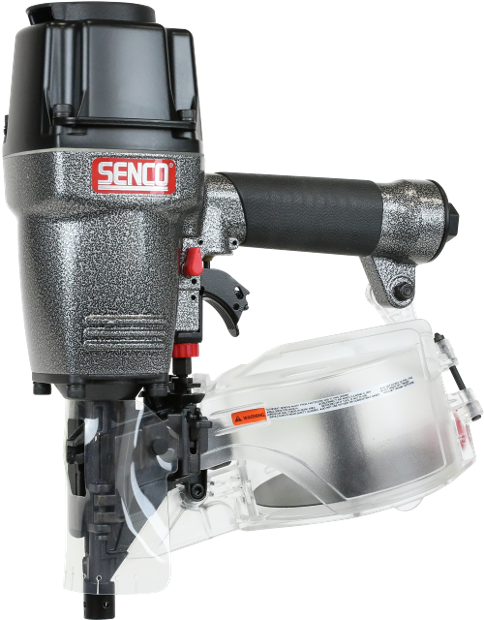

SCN58A, trommelspijkermachine, dual

tap image to zoom

Description

De SCN58A trommelspijkermachine schiet spijkers van 25mm tot 65mm in diameters van 2,3mm tot 2,87mm, die zowel draad als plastic verbonden zijn, zonder enige aanpassing. De sterke lichtgewicht behuizing van maar 2,6kg maakt de SCN58A tot een veelzijdige en comfortabele machine.

Lees meer Lees minder

Applications

Constructie, Palleten en kratten, Gevelbekleding, Ondervloeren, Houtconstructies

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 2S9011N
GTIN: 7414743091820
Type: SCN58A

Technical specifications

Rolhoek: 16 °
Rol type: Plat
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden 16mm
Activering instelling: Selectable
Magazijn capaciteit: 300
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 113.0 l/m
Werkdruk: 4.8 - 8.3 bar

Fastener specifications

Nageltype: Trommelspijkers
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 32 - 65 mm
Spijker gladde schacht diameter: 2.1 - 2.87 mm
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 32 - 60 mm
Spijker geringde schacht diameter: 2.1 - 2.87 mm
Schroef schacht type: Schroefschacht
Schroef schacht nagellengte: 50 - 65 mm
Schroef schacht nageldiameter: 2.5 - 2.5 mm
Pitch min: 7.8 mm
Pitch max: 7.8 mm
Max buitendiameter rol: 122 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 89 x 300 x 310 mm
Inclusief koffer: ja

Logistical specifications

Nettogewicht: 2.6 kg

Gerelateerde Fasteners

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN58A PDF 2 Mb
2S9011N_nl_CommercialProductSheet_1.4_1748511146996 PDF 2 Mb
