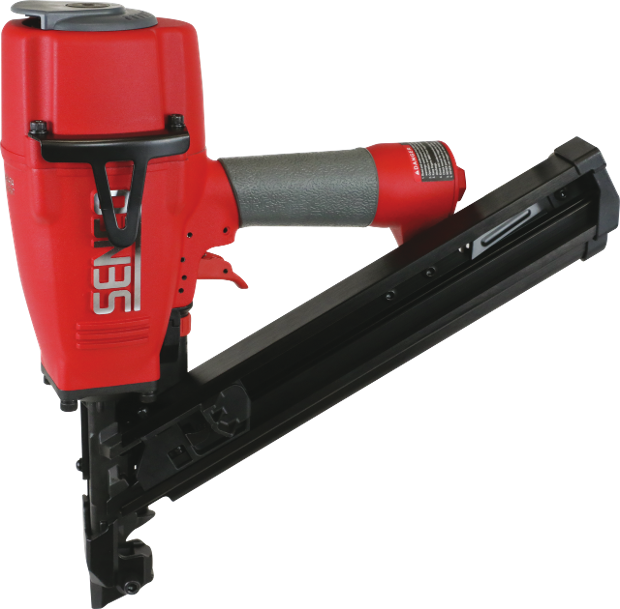

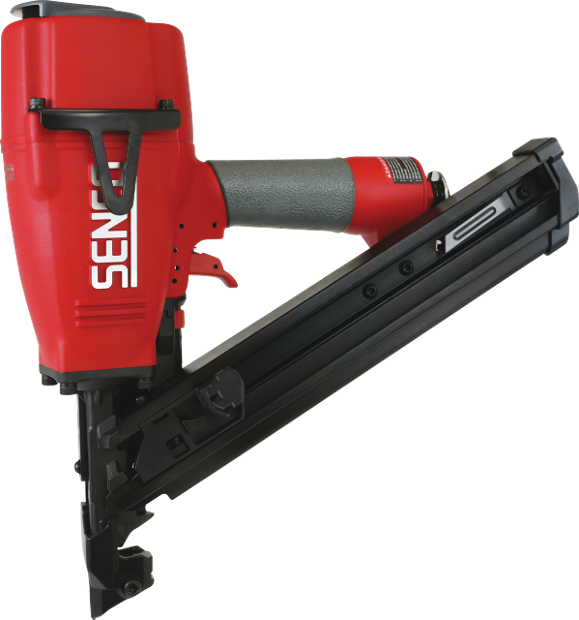

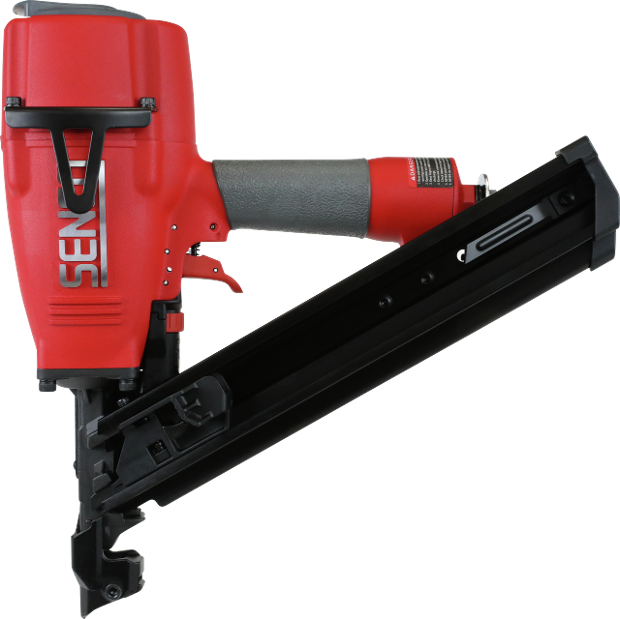

MC60-34, hoekplaat spijkermachine

tap image to zoom

Description

De MC60-34 is een compacte pneumatische hoekanker spijkermachine voor ankernagels met een lengte van 38 tot 64 mm. Het innovatieve neusontwerp zorgt voor een nauwkeurige plaatsing van de nagels in de voorgeboorde gaten van hoekankers en metalen platen. Deze ProSerie hoekanker spijkermachine is gemaakt van duurzame materialen van hoge kwaliteit, maar is toch licht van gewicht en ergonomisch uitgebalanceerd. De machine heeft de kracht om ankernagels in hardste houtsoorten te schieten.

Lees meer Lees minder

Applications

Balkdragers, Dakspantverbindingen, Ankers, Constructie

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 6K2001N
GTIN: 0741474115912
Type: MC60-34

Technical specifications

Rolhoek: 34 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Plastic gebonden
Alternatieve verbindingstype: Papier gebonden
Activering instelling: Restrictive
Magazijn capaciteit: 20
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 117.5 l/m
Werkdruk: 4.8 - 8.3 bar
Geluidsdrukniveau: 90.0 Lpa
Geluidskrachtniveau: 103.0 Lwa
Trillingniveau: 3.56 m/s2

Fastener specifications

Nageltype: Metalen hoekankers
Type geringde schacht: Geringde schacht
Spijker geringde schacht lengte: 38 - 64 mm
Spijker geringde schacht diameter: 3.3 - 4.3 mm

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 110 x 350 x 359 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.68 kg

Gerelateerde Fasteners

Downloads

Manual SENCO MC60-34 PDF 6 Mb
Part chart SENCO 6K2001N PDF 2 Mb
6K2001N_nl_CommercialProductSheet_1.6_1752275382598 PDF 2 Mb
