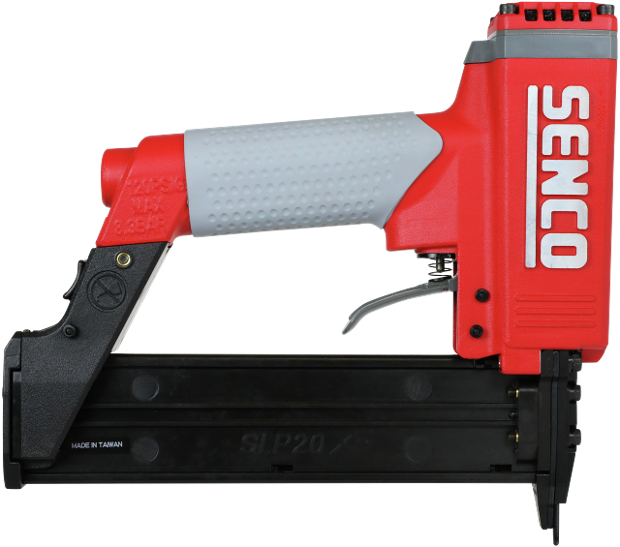

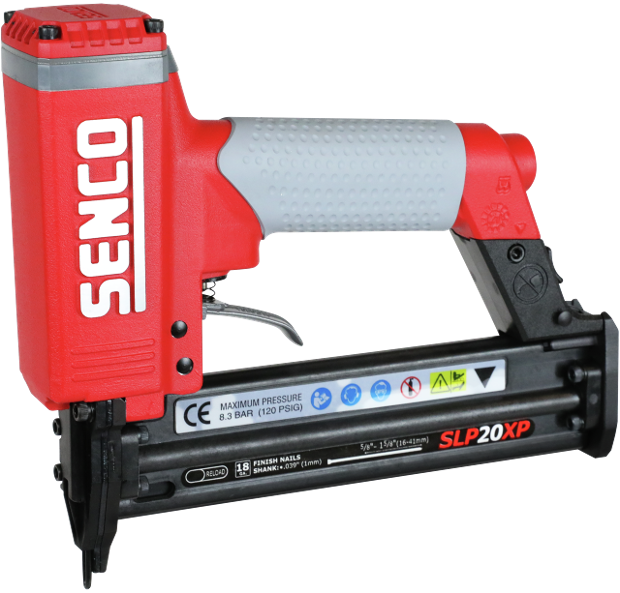

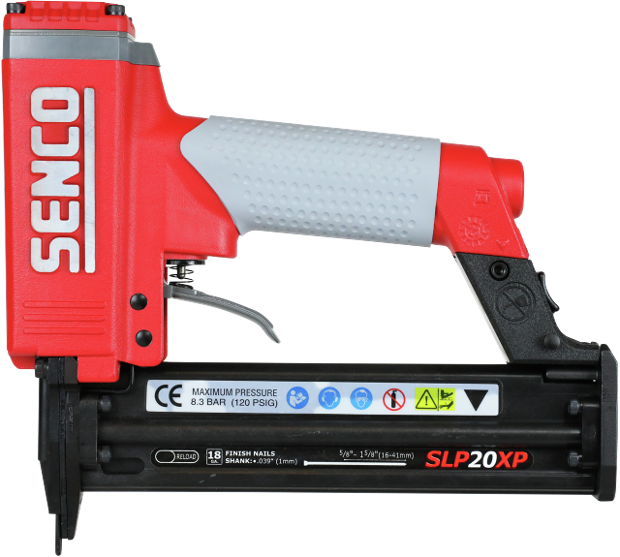

SLP20XP, bradmachine 1,2mm (AX/AY)

tap image to zoom

Description

De pneumatische SLP20XP voor AX & AY brads. Perfect voor kast- en meubel productie, plinten, lijsten en standbouw. Deze brad machine verwerkt AX & AY brads met een lengte van 16 tot 41mm. Uit uitgebreid klantenonderzoek blijkt dat het ontwerp van de SLP20XP een ongeëvenaard gebruiksgemak, superieure precisie en kracht levert, wat de SLP20XP zeer geschikt maakt voor vele materialen van verschillende diktes.

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: XtremePro
Artikelnummer: 432001N
GTIN: 0741474301407
Type: SLP20XP

Technical specifications

Rolhoek: 0 °
Olievrij: ja
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Lijm gebonden
Activering instelling: Restrictive
Magazijn capaciteit: 110
Luchtaansluiting: 1/4" inwendig
Luchtverbruik bij 60 schoten per minuut: 52.7 l/m
Werkdruk: 4.8 - 8.3 bar
Trillingniveau: under declaraton limit m/s2
Gauge: 18

Fastener specifications

Nageltype: Brads
Type gladde schacht: Gladde schacht
Spijker gladde schacht lengte: 16 - 41 mm
Spijker gladde schacht diameter: 1.2 - 1.2 mm

Non-technical specifications

Garantie: 5 jaar
Afmetingen (DxWxH): 50 x 241 x 210 mm
Inclusief koffer: ja

Logistical specifications

Nettogewicht: 1.0 kg

Gerelateerde Fasteners

Downloads

Manual SENCO stripnailers PDF 25 Mb
Manual SENCO Stripnailers PDF 24 Mb
Part chart SENCO brad nailer SLP20XP PDF 563 Kb
Part chart SENCO brad nailer SLP20XP PDF 563 Kb
432001N_nl_CommercialProductSheet_1.6_1752276794140 PDF 2 Mb
