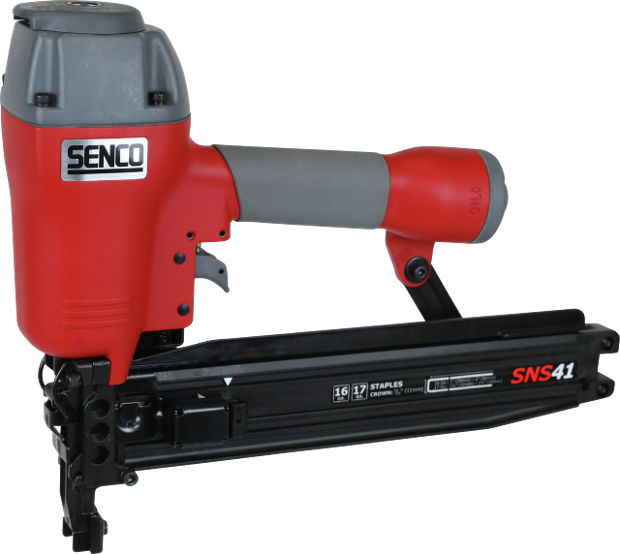

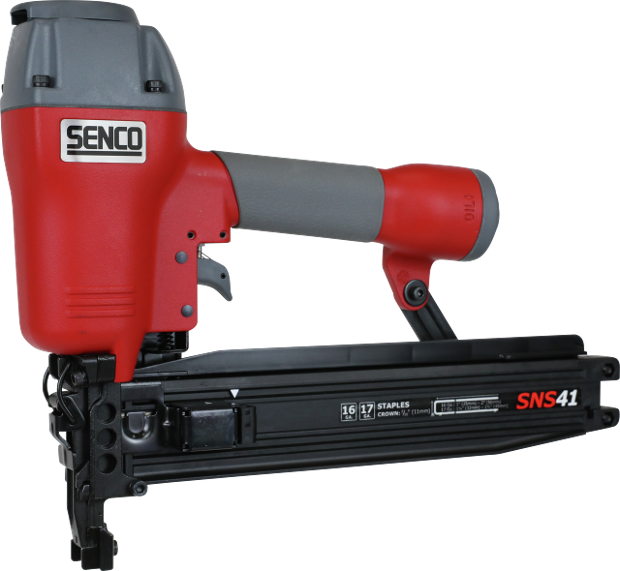

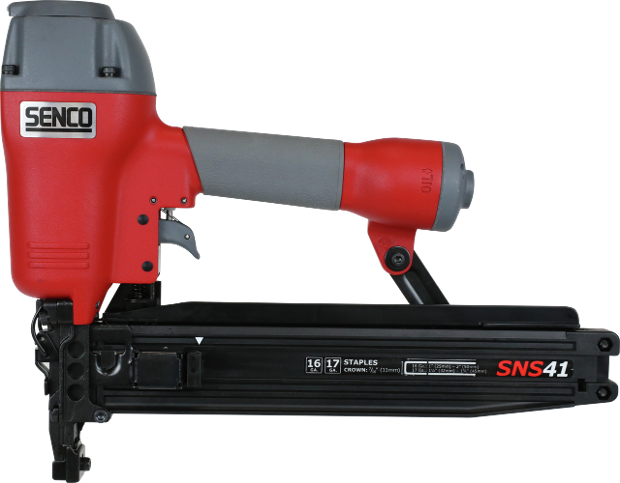

SNS41-N, zware nietmachine, BF/TF

tap image to zoom

Description

De pneumatische SNS41-N verwerkt N-nieten met een lengte van 25 tot 50 mm en O-nieten met een lengte van 32 tot 50 mm. De machine maakt deel uit van de ProSeries en zijn snelheid plus veelzijdigheid is een groot voordeel bij toepassingen zoals beplating en meubelmontage.

Lees meer Lees minder

Applications

Meubelen, Palleten en kratten, Bekleding, Ondervloeren, Planken

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 3L2003N
GTIN: 0741474308161
Type: SNS41

Technical specifications

Rolhoek: 0 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Lijm gebonden
Activering instelling: Dual
Magazijn capaciteit: 160
Schoten / Seconde: 12
Luchtaansluiting: 3/8" inwendig
Luchtverbruik bij 60 schoten per minuut: 153.0 l/m
Werkdruk: 5.5 - 8.3 bar
Geluidsdrukniveau: 84.0 Lpa
Geluidskrachtniveau: 92.0 Lwa
Trillingniveau: 2.5 m/s2
Gauge: 16

Fastener specifications

Niet type: Zware nieten
Niet-lengte: 25 - 50 mm
Niet serie: N niet
Alternatieve niet serie: O niet

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 75 x 381 x 273 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 2.1 kg

Gerelateerde Fasteners

Downloads

Manual SENCO SNS41-N PDF 2 Mb
Manual SENCO Staplers PDF 31 Mb
Part chart SENCO heavy wire stapler SNS41 PDF 1 Mb
3L2003N_nl_CommercialProductSheet_1.3_1757419253100 PDF 2 Mb
