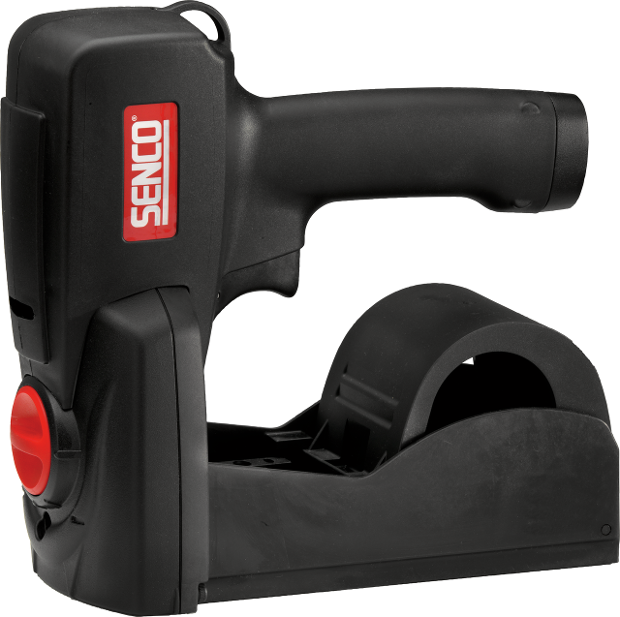

SRCC18P-dozenhechter, 32x15-18mm

tap image to zoom

Description

De SENCO Dozenhechter range, is ontworpen voor de twee meest voorkomende nieten, gebruikt in de verpakkingsmarkt. De machine heeft een draaiknop om traploos de hechtdiepte in te stellen. Het gebruiksgemak is hoog door een lichtgewicht behuizing en de toepassing van magnesium.

Lees meer Lees minder

Applications

Golfkarton toepassingen

Lees meer Lees minder

Request information

Specifications

Identifiers

Serie: Pro
Artikelnummer: 7M2015N
GTIN: 8715274168609
Type: SRCC18P

Technical specifications

Rolhoek: 0 °
Olievrij: nee
Werktemperatuur range: -18 - 49 °C
Verbindingstype: Lijm gebonden
Activering instelling: Restrictive
Magazijn capaciteit: 1000
Luchtverbruik bij 60 schoten per minuut: 59.4 l/m
Werkdruk: 4.9 - 6.3 bar
Geluidsdrukniveau: 75.4 Lpa
Geluidskrachtniveau: 88.4 Lwa
Trillingniveau: 1.34 m/s2
Gauge: 16

Fastener specifications

Niet type: Verpakkingsnieten
Niet-lengte: 15 - 18 mm
Niet serie: U niet

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 104 x 235 x 205 mm
Inclusief koffer: nee

Logistical specifications

Nettogewicht: 1.97 kg

Gerelateerde Fasteners

Indoor

Downloads

Manual SENCO carton closers PDF 10 Mb
Part chart SENCO pneumatic carton closer SRCC PDF 16 Mb
7M2015N_nl_CommercialProductSheet_1.3_1727393396938 PDF 2 Mb
