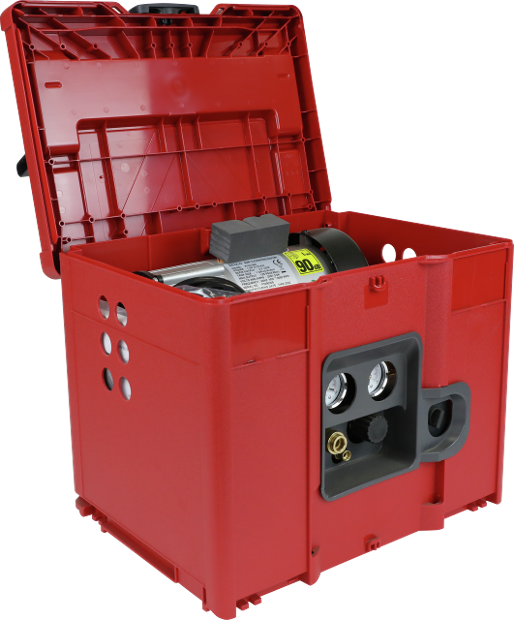

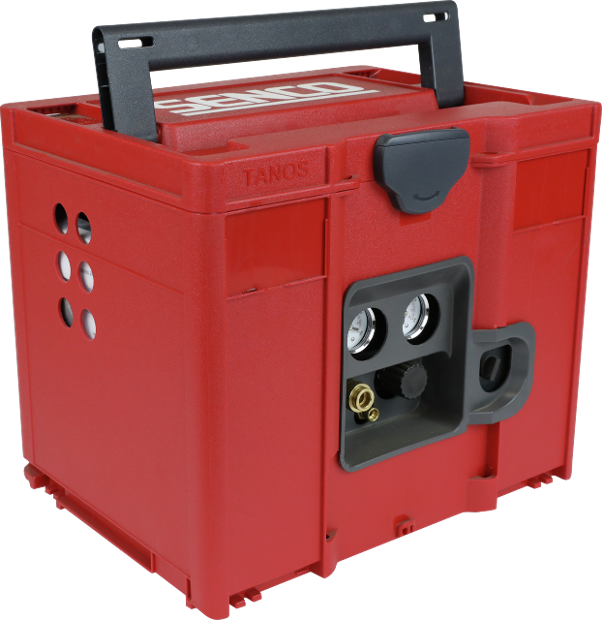

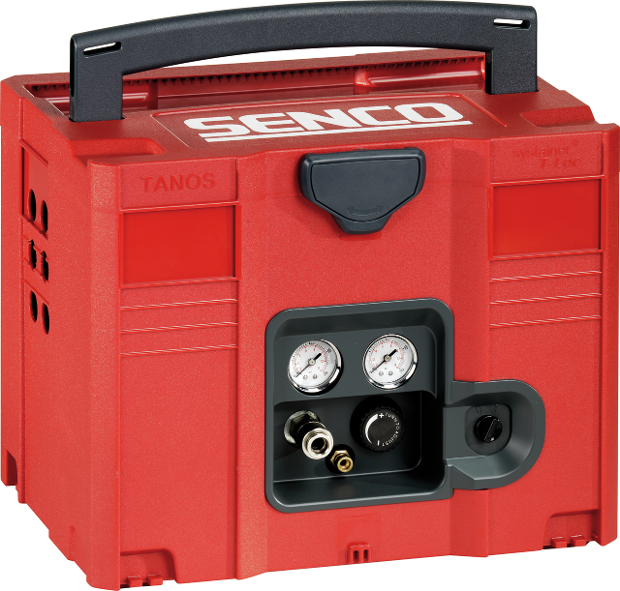

PCS1290, mini compressor in Systainer

tap image to zoom

Description

The PCS1290 is a compact & balanced compressor integrated in a Systainer for on-site, featuring an all-over roll cage for tough environments and long lasting performance without compromising on quality. This ultra-light single hand carry compressor is ideal for providing maximum manoeuvrability around site. The Systainer provides a great protection of the whole unit, and make it easily stacked in craftsman's truck.

Lees meer Lees minder

Request information

Specifications

Identifiers

Artikelnummer: PCS1290
GTIN: 8715274228754
Type: PC1010

Technical specifications

Olievrij: ja
Geluidsarm: ja
Frequentie: 50 Hz
Elektrisch stekker type: Continental
Nominaal kracht: 0.54 kW
Voltage: 230 V
Rotaties per minuut: 2850 RPM
Nominaal kracht: 0.375 HP
Tankcapaciteit: 3.8 l
Max. output druk: 8.0 bar
Aanzuigvolume: 34 l/m
Netto opbrengst 6 bar: 20 l/min
Aantal luchtaansluitingen: 1
Luchtaansluiting type: Universal coupler

Non-technical specifications

Garantie: 1 jaar
Afmetingen (DxWxH): 325 x 415 x 340 mm
Inclusief koffer: nee

Logistical specifications

Brutogewicht: 16.675 kg
Nettogewicht: 15.385 kg

Downloads

Manual SENCO PCS1290 PDF 19 Mb
