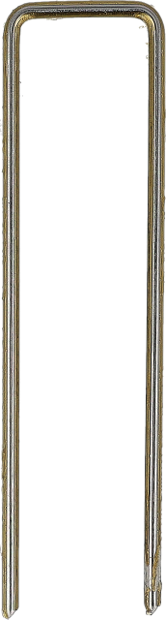

M niet 38mm

tap image to zoom

Description

M niet AISI304, Sencoted

Lees meer Lees minder

Applications

Kasten, Kratten, Lades, Stofferen, Systeemplafond, Underlayment, Lattenrooster, Bekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Artikelnummer: M17BGB
GTIN: 8715274004792

Technical specifications

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Roestvast staal AISI 304 (A2)
Gauge: 18

Fastener specifications

Coating: Sencoted
Toepassingsomgeving: Buiten
Punt type: Beitel
Punthoek: 70 °
Niet type: Middelzware nieten
Niet-dikte: 1.04 mm
Niet-draad afmeting: 1.17 mm
Niet-kroon breedte: 9.5 mm
Niet-binnen breedte: 7.67 mm
Niet serie: M niet

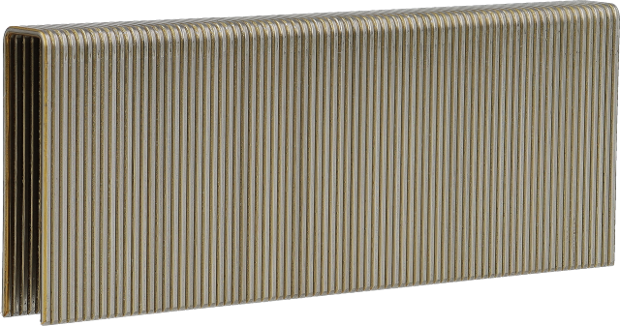

Aantal bevestigingsmiddelen per strip/rol: 78 - 80
Niet-lengte: 38.0 mm

Non-technical specifications

Verpakkingshoeveelheid: 10000

Logistical specifications

Nettogewicht: 7.41 kg

Gerelateerde tools

Zie alle producten

HNS5015P 3 in 1 nietmachine

Artikel number

HNS5015P

Niet-lengte

16 - 38 mm

Rolhoek

0 °

Serie

SemiPro

Downloads

M17BGB_nl_CommercialProductSheet_1.4_1752303832431 PDF 1 Mb
