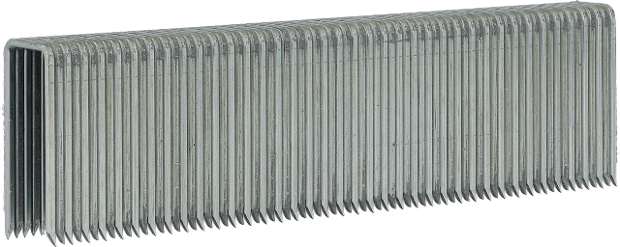

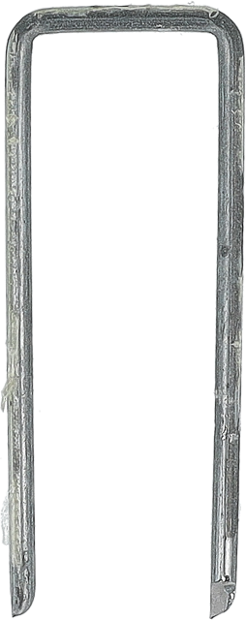

M niet 25mm

tap image to zoom

Description

M niet gegalvaniseerd, spreidpunt

Lees meer Lees minder

Applications

Kasten, Kratten, Lades, Stofferen, Systeemplafond, Underlayment, Lattenrooster, Bekleding

Lees meer Lees minder

Request information

Specifications

Identifiers

Artikelnummer: M13FAA
GTIN: 8715274018713

Technical specifications

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Carbon met standaard treksterkte
Gauge: 18

Fastener specifications

Afwerking: Standaard gegalvaniseerd
Coating: Standaard
Toepassingsomgeving: Binnen
Punt type: Divergent
Punthoek: 70 °
Niet type: Middelzware nieten
Niet-dikte: 1.04 mm
Niet-draad afmeting: 1.17 mm
Niet-kroon breedte: 9.5 mm
Niet-binnen breedte: 7.67 mm
Niet serie: M niet
Aantal bevestigingsmiddelen per strip/rol: 78 - 80
Niet-lengte: 25.0 mm

Non-technical specifications

Verpakkingshoeveelheid: 5000

Logistical specifications

Nettogewicht: 2.47 kg

Gerelateerde tools

Zie alle producten

Downloads

M13FAA_nl_CommercialProductSheet_1.5_1752279230429 PDF 1 Mb
