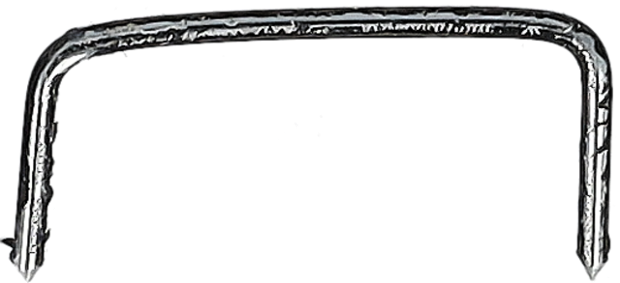

AT niet 10mm RAL9005

tap image to zoom

Description

AT niet gegalvaniseerd, grootverpakking, RAL kleur

Lees meer Lees minder

Applications

Meubelen, Stofferen, Isolatieplaten, Vilt, Kratten, Schoenen

Lees meer Lees minder

Request information

Specifications

Identifiers

Artikelnummer: AT06BACP9005
GTIN: 8715274015927

Technical specifications

Rolhoek: 0 °
Verbindingstype: Lijm gebonden
Draad materiaal: Carbon met standaard treksterkte
Gauge: 21

Fastener specifications

Afwerking: Standaard gegalvaniseerd
Coating: Standaard
Toepassingsomgeving: Binnen
Punt type: Beitel
Punthoek: 90 °
Niet type: Lichte nieten
Niet-dikte: 0.69 mm
Niet-draad afmeting: 0.83 mm
Niet-kroon breedte: 12.7 mm
Niet-binnen breedte: 11.3 mm
Niet serie: AT niet
Aantal bevestigingsmiddelen per strip/rol: 150 - 150
Niet-lengte: 10.0 mm

Non-technical specifications

Verpakkingshoeveelheid: 16000

Logistical specifications

Nettogewicht: 2.08 kg

Gerelateerde tools

Zie alle producten

Downloads

AT06BACP9005_nl_CommercialProductSheet_1.4_1752319451406 PDF 1 Mb
